Запчасти Case 921F (55.202.AA) - GRID HEATER INSTALLATION (55) - ELECTRICAL SYSTEMS

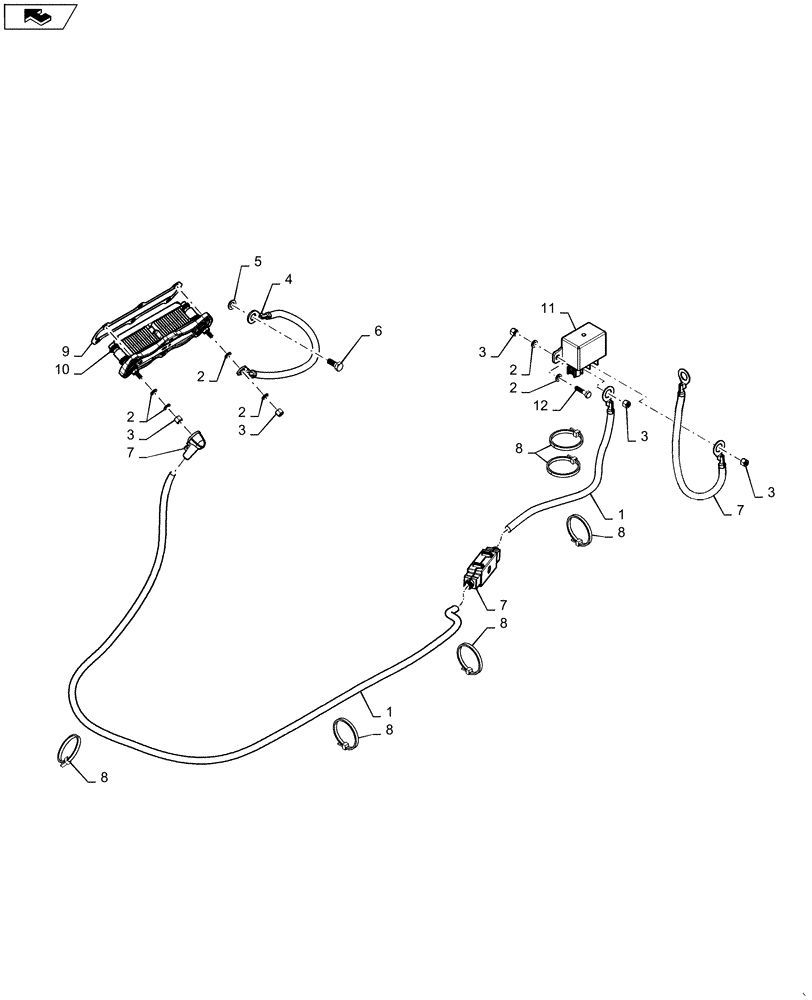

Схема запчастей Case 921F - (55.202.AA) - GRID HEATER INSTALLATION (55) - ELECTRICAL SYSTEMS
6
8
12
3
10
11
2
9
2
2
8
2
8
3
4
3
3
7
1
7
3
1
7
8
2
8
home
5

Артикул

Название

Примечание

Количество

1

47411272

ELECTRIC CABLE

Grid Heater Power

1шт.

2

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

3

832-10406

NUT,M6 x 1, Cl 8

6шт.

4

87398558

CABLE

Grid Heater Ground

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

47411271

ELECTRIC CABLE

Relay Power

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

9

2854701

GASKET,0.8mm Thk

Air Intake

1шт.

10

87300128

HEATER,24V, 2400W

Assembly, 24 Volt

1шт.

11

84540512

RELAY,150A

Power

1шт.

12

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 12
