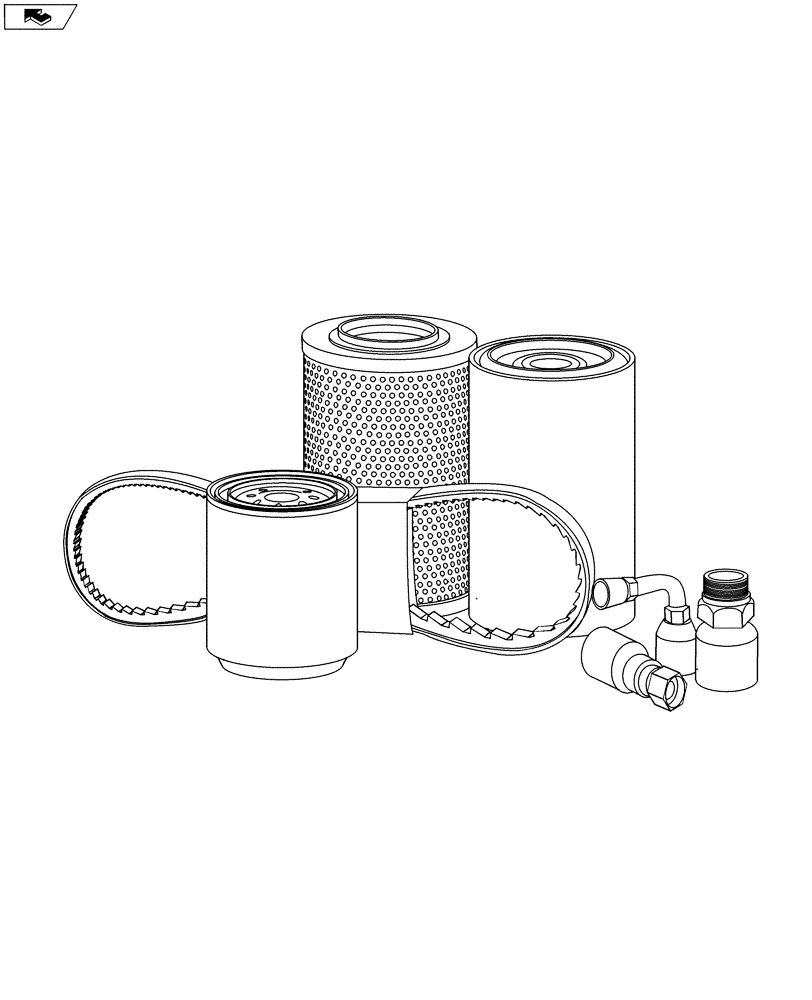

Запчасти Case 921F (05.100.02) - INITIAL STOCKING LIST "B" (ISL) (05) - SERVICE & MAINTENANCE

1

87397416

BELT,95.49 mm W x 1725.00 mm L

ALTERNATOR W/ AC

1шт.

2

FAR8602680

BELT,1230.00 mm L, 8 Ribs

W/O A/C

1шт.

3

87315269

BREAKER

CIRCUIT 105A Auto Reset

1шт.

4

410941A1

BULB,Halogen, 24V, 70W

24V - 4W POSITION

1шт.

5

410939A1

BULB,S8, 24V, 21W

24V - 21W TURN SIGNAL H

1шт.

6

H40533

LAMP,Halogen, 12V, 70W

24V - 70W

1шт.

7

K340501

BULB

24V - 70W HIGH BEAM

1шт.

8

410940A1

BULB,T4W, 24V, 4W

24V - 70W LOW BEAM

1шт.

9

395185A1

BULB,24V, 10W

24V 10w DOME LIGHT

1шт.

10

440729A1

FILLER CAP

COOLANT RECOVERY RESERVOIR

1шт.

11

BN324706

CAP

FUEL TANK

1шт.

12

2852136

CAP,48mm ID x 56mm OD x 18mm W

OIL TANK

1шт.

13

83957211

RADIATOR CAP

1шт.

14

76084175

CAP

TRANSMISSION FILL

1шт.

15

2852464

DIPSTICK

ENGINE OIL

1шт.

16

87712194

CAB FILTER,Standard

1шт.

16

84234542

CAB FILTER,Carbon

1шт.

17

87522597

FUSE,10A, Mini, Red

10 AMP

1шт.

18

87522595

FUSE,7.5A, Mini, Brown

7.5A.

1шт.

19

87327335

FUSE,20 Amp

JCASE 32 VOLT 20A

1шт.

20

87327346

FUSE,40A, Green

JCASE 32 VOLT 40A

1шт.

21

282775A1

IGNITION SWITCH

1шт.

22

87364063

SEAL KIT

BRAKE PUMP SEAL

1шт.

23

87309174

O-RING,167mm ID

PIN BUCKET

1шт.

24

87312626

RELAY,24V

MICRO 5 PIN 280

1шт.

25

87351908

SOLENOID SWITCH

STARTER

1шт.

26

2859674

SENSOR,Oil Pressure

EOP

1шт.

27

321446A1

SENSOR

FLUID TEMP

1шт.

28

84367903

FILTER

DEF INLINE FILTER

1шт.

29

8603397

SENSOR

INDUCTIVE COMPLETE

1шт.

30

8900134428

SENSOR

SPEED TRANSMITTING

1шт.

31

87712669

SENSOR

TEMPERATURE TRANSMISSION

1шт.

32

87363451

SEAL KIT

STEERING CYLINDER SEAL KIT

1шт.

33

279492A1

RESTRICTION SWITCH

AIR FILTER RESTRICTION

1шт.

34

84385610

PRESSURE SWITCH

BRAKE DECLUTCH

1шт.

35

84177015

PRESSURE SWITCH

BRAKE LIGHT PRESSURE

1шт.

36

8605738

PRESSURE SWITCH

BRAKE WARNING PRES,

1шт.

37

87350049

SWITCH

FAN REVERSER

1шт.

38

374426A2

SWITCH

HAZARD

1шт.

39

L126256

SWITCH

MASTER DISCONNECT

1шт.

40

76083139

PRESSURE SWITCH

PRESSURE AUX. STRG.

1шт.

41

1546498C1

SWITCH

PROXIMITY -N.C.(XT,Z-BAR)

1шт.

42

1546497C1

SWITCH

PROXIMITY -N.O. (Z-BAR)

1шт.

43

87350055

SWITCH

ROCKER-RIDE CONTROL

1шт.

44

87350044

SWITCH

TRANSMISSION

1шт.

45

374429A2

WINDSHIELD WIPER SWI

WINDSHIELD WIPER REAR

1шт.

46

87350087

SWITCH

HOOD LIFT

1шт.

47

2856173

BELT TENSIONER

1шт.

48

84322388

THERMOSTAT

1шт.

49

232364A1

FLASHER UNIT

1шт.

50

87635840

VALVE

CHECK, COOLANT

1шт.

51

87519307

SENSOR

WATER SEP SEN

1шт.

52

84206552

FILLER CAP,Male

DEF

1шт.

53

87482355

SENSOR

HUMIDITY TEMP

1шт.

54

87482353

SENSOR

EXHAUST TEMP

1шт.

55

84422745

SENSOR

NOX

1шт.

56

84254852

FILTER

SUPPLY MODULE MAIN

1шт.

57

84247272

FILTER,In-Line

SUPPLY MODULE INLINE

1шт.
