Запчасти Case 921F (55.015.AB[03]) - ENGINE AND REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

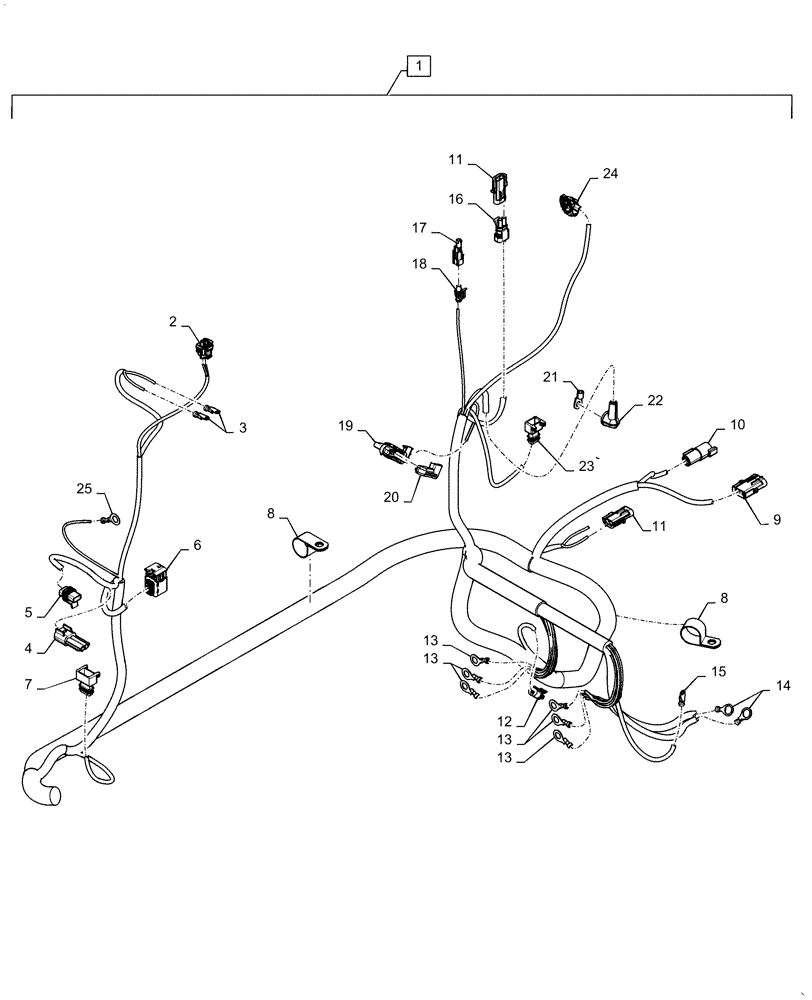

Схема запчастей Case 921F - (55.015.AB[03]) - ENGINE AND REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
22
13
13
12
1
20
15
7
16
4
24
17
13
23
19
8
11
11
13
10
5
9
8
6
21
25
14
18
3
2

Артикул

Название

Примечание

Количество

1

47679709

WIRE HARNESS

Engine and Rear Chassis, Incl 2 - 25, Serial Range: -NFF232958

1шт.

1

47817429

WIRE HARNESS

Engine and Rear Chassis, Incl 2 - 25, Start Serial: NFF232959

1шт.

2

87709793

WIRE CONNECTOR,Female, 2 Cavities

1шт.

3

1964702C1

TERMINAL CONNECTOR

Ring

2шт.

4

182068A1

CONNECTOR, ELEC

2 Cavity Receptacle

1шт.

5

182069A1

CONNECTOR, ELEC

1шт.

6

84152563

ELEC CONNECTOR

1шт.

7

8602416

CONNECTOR,ELECTRIC

3 Pin Plug

1шт.

8

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

3шт.

9

245485C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

10

87706435

TERMINAL CONNECTOR

1шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

12

194788A1

CONNECTOR, 2-POLE

2 Cavity Plug

1шт.

13

1964718C1

TERMINAL CONNECTOR

Ring

6шт.

14

382256A1

TERMINAL CONNECTOR

Ring

2шт.

15

1964720C1

TERMINAL CONNECTOR

Ring

1шт.

16

245482C1

ELEC CONNECTOR,2 Pin

2 Cavity Plug

1шт.

17

87679525

ELEC CONNECTOR,Female, 1 Cavity

1шт.

18

8602417

TERMINAL CONNECTOR,Female

1шт.

19

8602487

PLUG

5 Way 90 Degree

1шт.

20

47476920

ELEC CONNECTOR

Wire, 90 Degree Cover

1шт.

21

84303407

TERMINAL,Ring Tongue, M8

Ring Tongue M8

1шт.

22

399470R1

BOOT

Cover

1шт.

23

291718A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

24

87709809

ELEC CONNECTOR

1шт.

25

1964706C1

TERMINAL CONNECTOR

Ring

1шт.

Выбрано товаров: 26
