Запчасти Case 921F (55.015.AB[02]) - ENGINE AND REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

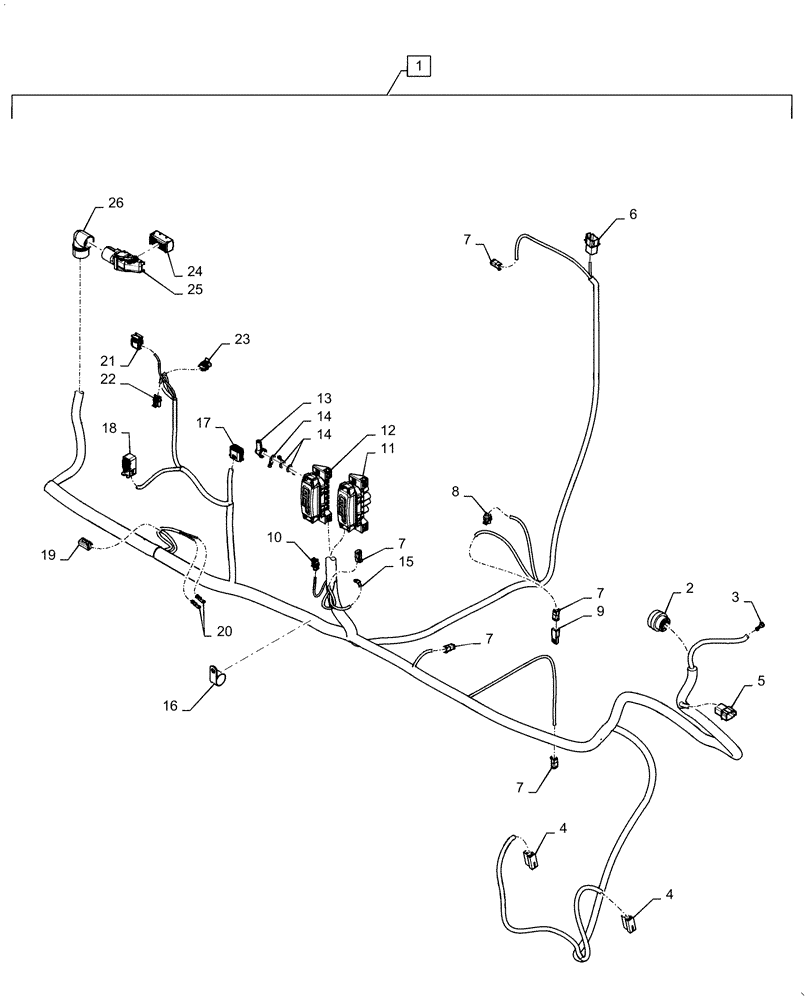

Схема запчастей Case 921F - (55.015.AB[02]) - ENGINE AND REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
18
7
9
4
20
14
7
6
7
21
7
25
23
22
19
2
16
14
17
15
12
13
3
1
24
7
11
5
10
8
4
26

Артикул

Название

Примечание

Количество

1

47679709

WIRE HARNESS

Engine and Rear Chassis, Incl 2 - 26, Serial Range: -NFF232958

1шт.

1

47817429

WIRE HARNESS

Engine and Rear Chassis, Incl 2 - 26, Start Serial: NFF232959

1шт.

2

374973A1

CONNECTOR,ELECTRIC

31 Cavity Plug

1шт.

3

1964722C1

TERMINAL CONNECTOR

Ring

1шт.

4

3227856R1

CONNECTION

2 Cavity Receptacle

2шт.

5

225411C1

CONNECTOR, ELEC

8 Cavity Receptacle

1шт.

6

225320C1

ELEC CONNECTOR

8 Cavity Receptacle

1шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

5шт.

8

256340A1

CONNECTOR, ELEC

Metri Pack 2

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

10

82012083

WIRE CONNECTOR,Female

1шт.

11

84563565

FUSE HOLDER

1шт.

12

84380518

FUSE BOX

1шт.

13

399470R1

BOOT

Cover

1шт.

14

1964723C1

TERMINAL CONNECTOR

Ring

3шт.

15

47426283

TERMINAL

Ring

1шт.

16

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

17

87695592

CONTACT HOUSING,Female, 12 Pole

1шт.

18

47421681

ELEC CONNECTOR

12 Way Receptacle

1шт.

19

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

20

1964703C1

TERMINAL CONNECTOR

Ring

2шт.

21

84146685

WIRE CONNECTOR,Female, 3 Cavities

1шт.

22

84062580

CONNECTOR, ELEC

3 Pin

1шт.

23

182069A1

CONNECTOR, ELEC

2 Cavity Plug

1шт.

24

84300197

ELEC CONNECTOR

96 Way Receptacle

1шт.

25

84300198

ELEC CONNECTOR

96 Way Receptacle

1шт.

26

8602414

ELBOW

1шт.

Выбрано товаров: 27
