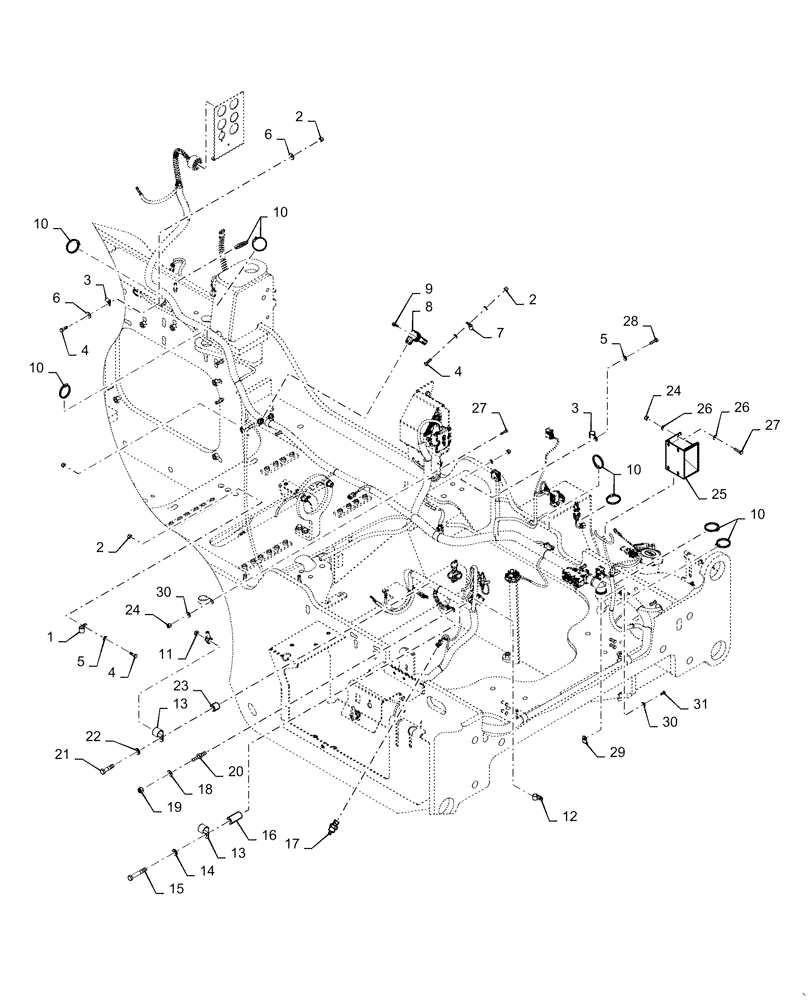

Запчасти Case 921F (55.015.AB[01]) - ENGINE AND REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

2

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

3шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

6

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

7

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

8

87482355

SENSOR

1шт.

9

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

13

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

15

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

1шт.

16

324441A1

SPACER,12.7mm ID x 25.4mm OD x 54mm L

1шт.

17

321446A1

SENSOR

Engine Coolant

1шт.

18

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

19

L127555

NUT,Hex, 3/8" - 16

2шт.

20

L127553

STUD

2шт.

21

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

23

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Handle Spacer

1шт.

24

832-10406

NUT,M6 x 1, Cl 8

4шт.

25

D121972

ALARM

Back Up

1шт.

26

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

27

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

28

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

29

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

31

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.
