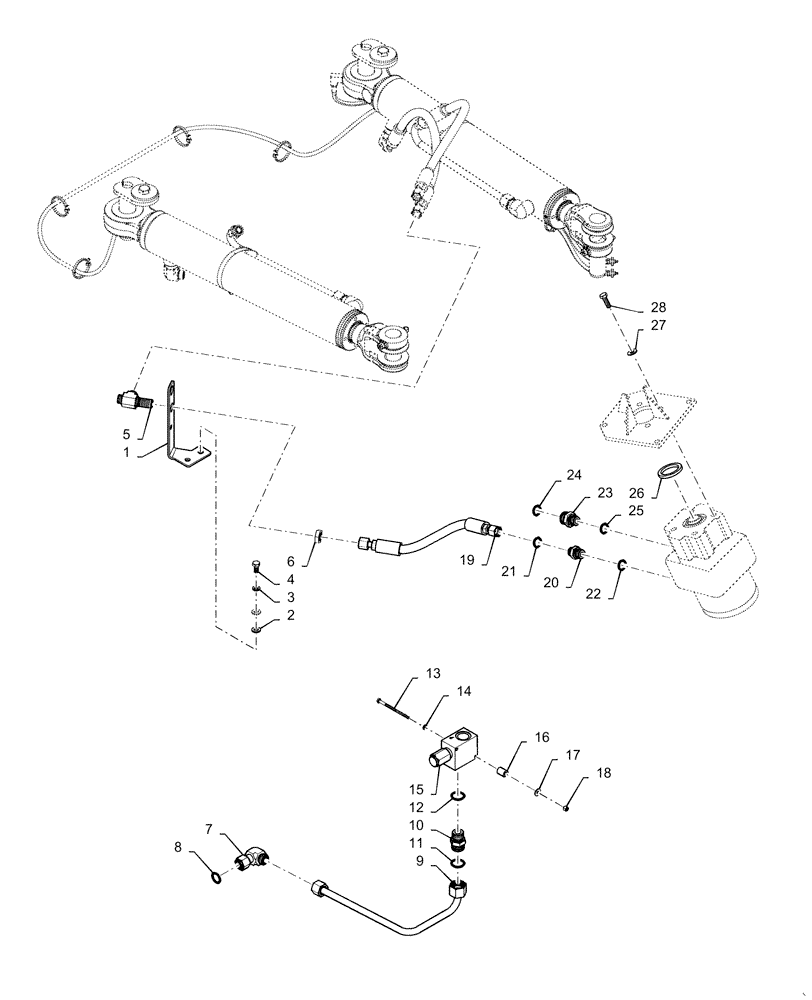

Запчасти Case 921F (41.216.AV[03]) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

8602342

BRACKET

Bulkhead

1шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

6

701-903

NUT,13/16" - 16

2шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

84428746

HYD TUBE

Valve to Manifold

1шт.

10

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

11

14438185

O-RING,24mm ID x 3mm

1шт.

12

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

827-6100

BOLT,Hex, M6 x 100mm, Cl 10.9

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

87427823

VALVE PRESSURE RELIE

1шт.

16

87563043

SPACER

2шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

18

832-10406

NUT,M6 x 1, Cl 8

2шт.

19

87398127

HOSE ASSY.

Steering Cylinder

2шт.

20

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

2шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

26

76043957

GASKET

Steering Orbitrol

1шт.

27

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
