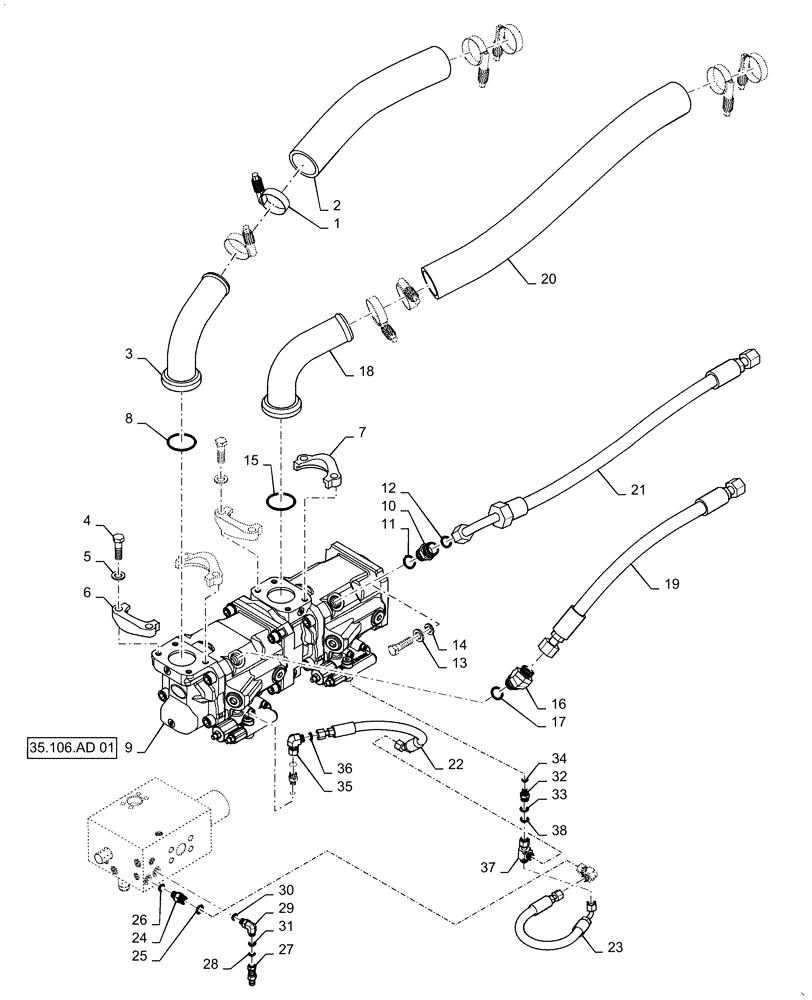

Запчасти Case 921F (41.200.BY[03]) - PRIORITY VALVE AND HYDRAULIC PUMP INSTALLATION (41) - STEERING

1

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

2

84248697

HOSE,50.8mm ID x 905mm L, SAE 100R4

Small Pump Suction

1шт.

3

8602646

TUBE,50.80 mm OD x 130, 100 mm L

Pump Suction

1шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

5

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

6

A14141

FLANGE

2шт.

7

L14386

CLAMP

2шт.

8

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

9

84240549

HYDRAULIC PUMP

1шт.

10

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

14

892-11012

LOCK WASHER,M12

4шт.

15

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

16

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

87470879

HYD TUBE

Pump Suction

1шт.

19

84243171

HOSE ASSY.

Large Case Drain

1шт.

20

84248698

HOSE,50.8mm ID x 645mm L, SAE 100R4

Large Pump Suction

1шт.

21

84248699

HOSE ASSY.

Small Case Drain

1шт.

22

84327033

HOSE ASSY.

Pump 2 Load Sense

1шт.

23

84327034

HOSE ASSY.

Pump 2 Load Sense

1шт.

24

84327039

CHECK VALVE

1шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

2шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

29

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

30

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

32

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

2шт.

33

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

34

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

35

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

2шт.

36

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

38

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
