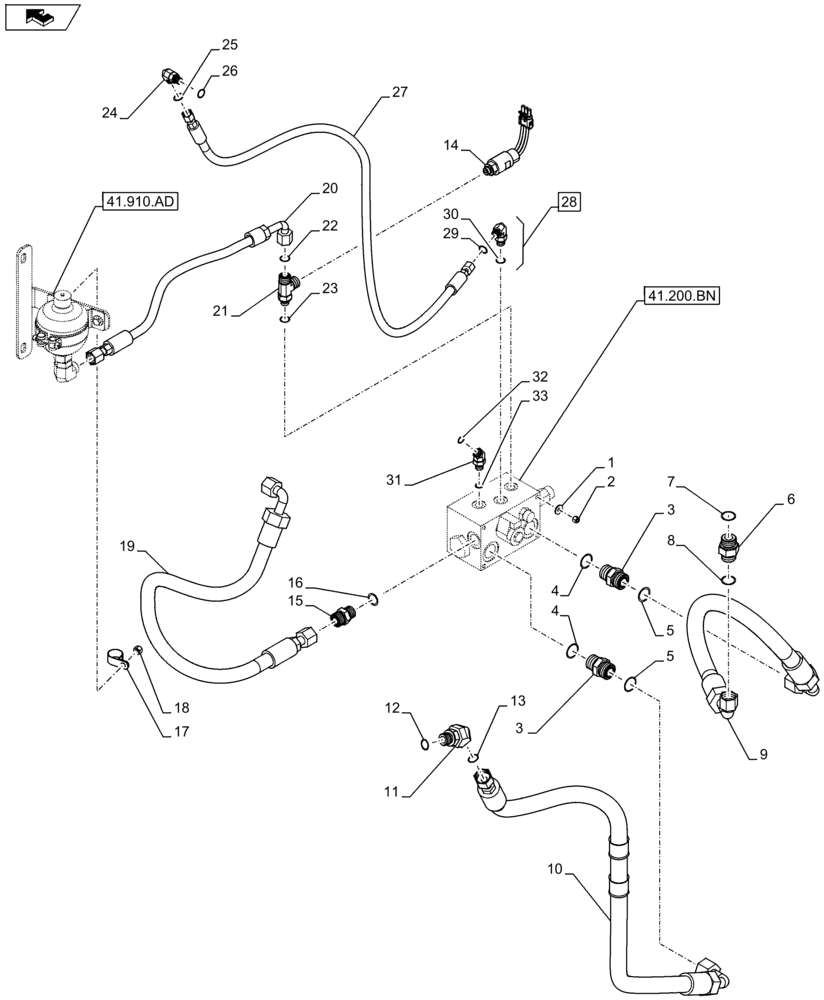

Запчасти Case 921F (41.200.BO[02]) - AUXILIARY STEERING MANIFOLD HOSES AND CONNECTORS (41) - STEERING

1

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

2

832-10406

NUT,M6 x 1, Cl 8

4шт.

3

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

4

14438185

O-RING,24mm ID x 3mm

2шт.

5

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

6

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

821F Only

1шт.

6

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

921F Only

1шт.

7

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

821F & 921F Only

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

821F & 921F Only

1шт.

9

87379709

HOSE ASSY.

Auxiliary Pressure, 821F Only

1шт.

9

84374035

HOSE ASSY.,19.05mm ID x 860.5mm L, SAE 100R12

Auxiliary Pressure, 921F Only

1шт.

10

87617167

HOSE ASSY.

Auxiliary Steering Pressure 821F Only

1шт.

10

84243203

HOSE ASSY.

Auxiliary Steering Pressure 921F Only

1шт.

11

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

398888A1

PRESSURE SWITCH

Auxiliary Steering

1шт.

15

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

87563046

HOSE

Auxiliary Tank 821F Only

1шт.

19

84374066

HOSE ASSY.,15.88mm ID x 507.9mm L, SAE 100R1

Auxiliary Tank 921F Only

1шт.

20

87472244

HOSE ASSY.

Accumulator 821F Only

1шт.

20

84243206

HOSE ASSY.

Accumulator 921F Only

1шт.

21

87725860

FITTING

With Orifice

1шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

27

87519866

HOSE ASSY.

Steering Load Sense 821F Only

1шт.

27

84243205

HOSE ASSY.

Steering Load Sense 921F Only

1шт.

28

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
