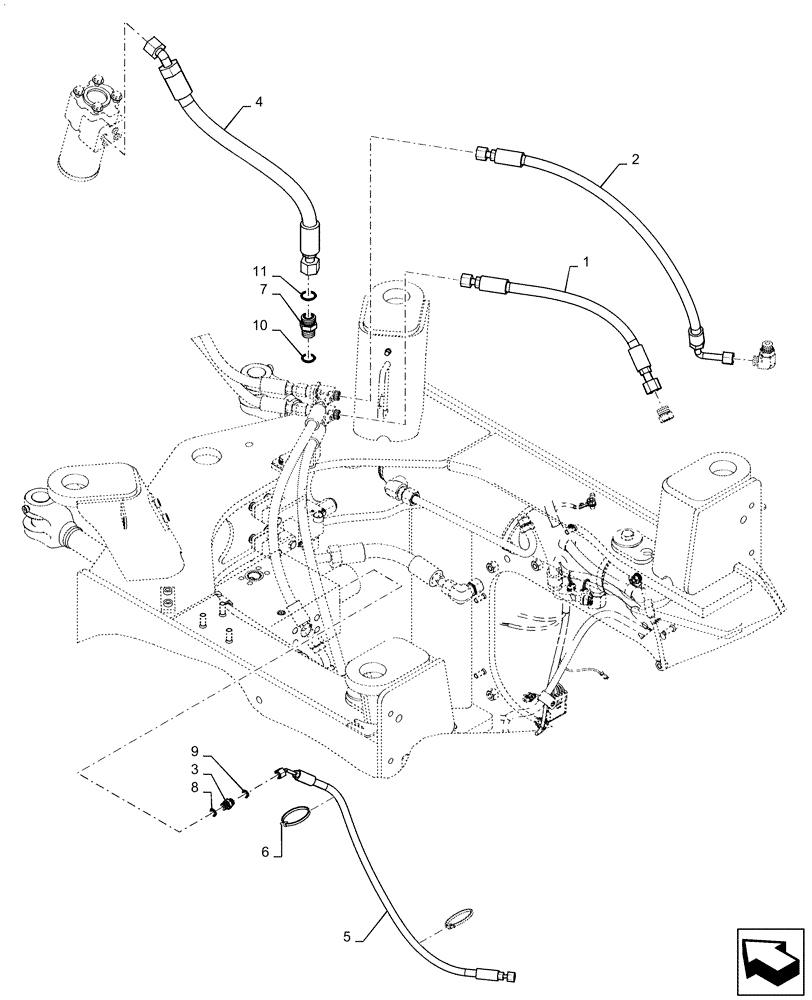

Запчасти Case 921F (41.200.AT[05]) - STANDARD STEERING NO JOYSTICK WITH AUXILIARY STEERING (41) - STEERING

1

47382546

HOSE

Right Side Base

1шт.

2

47382551

HOSE

Right Side Rod

1шт.

3

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

4

87563041

HOSE ASSY.

Steering Return

1шт.

5

84243209

HOSE ASSY.

Load Sensing

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

7

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
