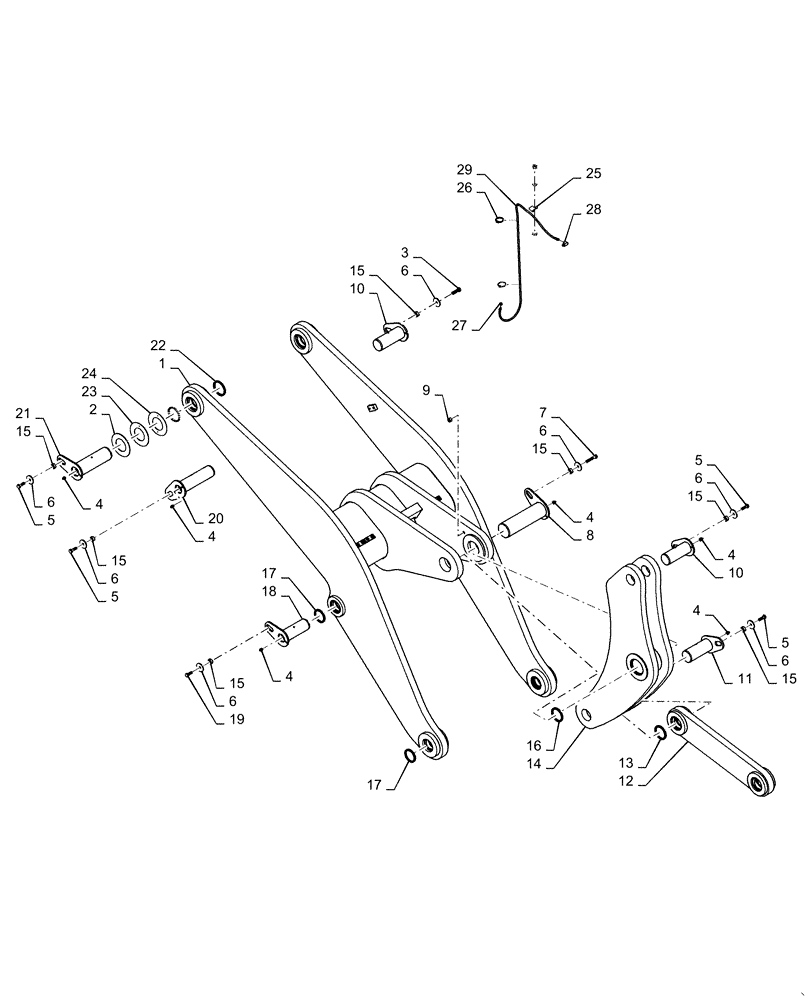

Запчасти Case 921F (39.100.AY[04]) - LIFT ARM INSTALLATION (39) - FRAMES AND BALLASTING

1

84259134

LIFT ARM

Z-Bar

1шт.

1

84383479

LIFT ARM

XR/LR

1шт.

2

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

Dump Link

1шт.

3

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

6

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

7

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

8

84327610

PIN,114.3mm OD x 419mm L

Bellcrank

1шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

10

84327613

PIN

Dump Link

1шт.

11

84327612

PIN

Dump Link

1шт.

12

84527286

LIFT LINK

Dump linkage Rod

1шт.

13

S92653

WIPER

Rod 88.9

4шт.

14

84259127

BELLCRANK

1шт.

15

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

10шт.

16

84238525

SEALING RING

Wiper Rod 114.3,

2шт.

17

365523A1

WIPER SEAL

Wiper Rod 82.5

8шт.

18

87308951

PIN,82.5mm OD x 230mm L

Lift Cylinder

2шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

20

87308904

PIN,82.55mm OD x 308mm L

Lift Cylinder Chassis

2шт.

21

87308438

PIN

Lift Arm

2шт.

22

86982500

SEAL,95.12mm ID x 111.15mm OD x 9.77mm Thk

Wiper Rod 95.3

4шт.

23

87308470

WASHER

1шт.

24

87308469

WASHER

2.4 Thick

1шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

26

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

27

F53473

LOCK NUT,1/8-27 NPSM

CABLE STRAP

1шт.

28

328082A1

ELBOW

90 degree

1шт.

29

318012A1

FLEXIBLE HOSE

1шт.
