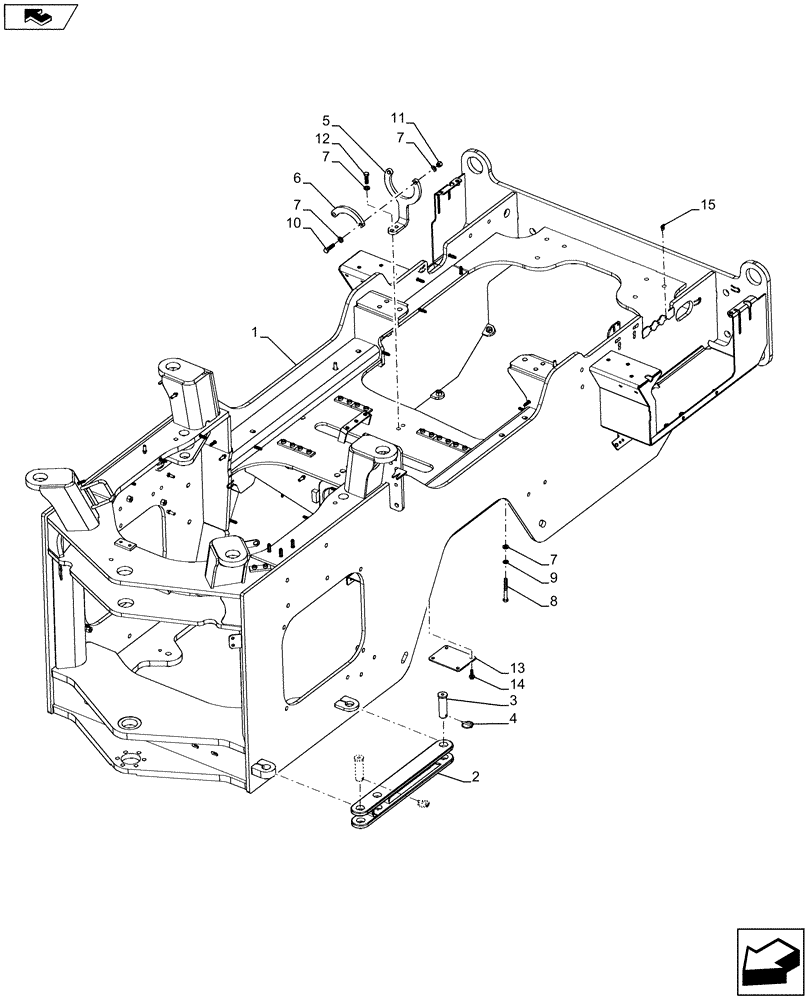

Запчасти Case 921F (39.100.AS) - REAR CHASSIS (39) - FRAMES AND BALLASTING

1

47402237

FRAME

Rear

1шт.

1

47387261

FRAME

Rear

1шт.

2

412067A1

LOCKING BAR

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

Articulation Lock

2шт.

4

A30338

PIN

Klik

2шт.

5

84238373

GUARD

Drive Shaft

1шт.

6

87333866

GUARD

Drive Shaft, Top

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

8

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

9

892-11012

LOCK WASHER,M12

4шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

12

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

13

47397618

PLATE

Tank Drain Cover

1шт.

14

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

15

833-40306

SPRING NUT,M6, U

3шт.
