(39.100.AH[03]) - BATTERY CASE COVER

Запчасти Case 921F (39.100.AH[03]) - BATTERY CASE COVER (39) - FRAMES AND BALLASTING

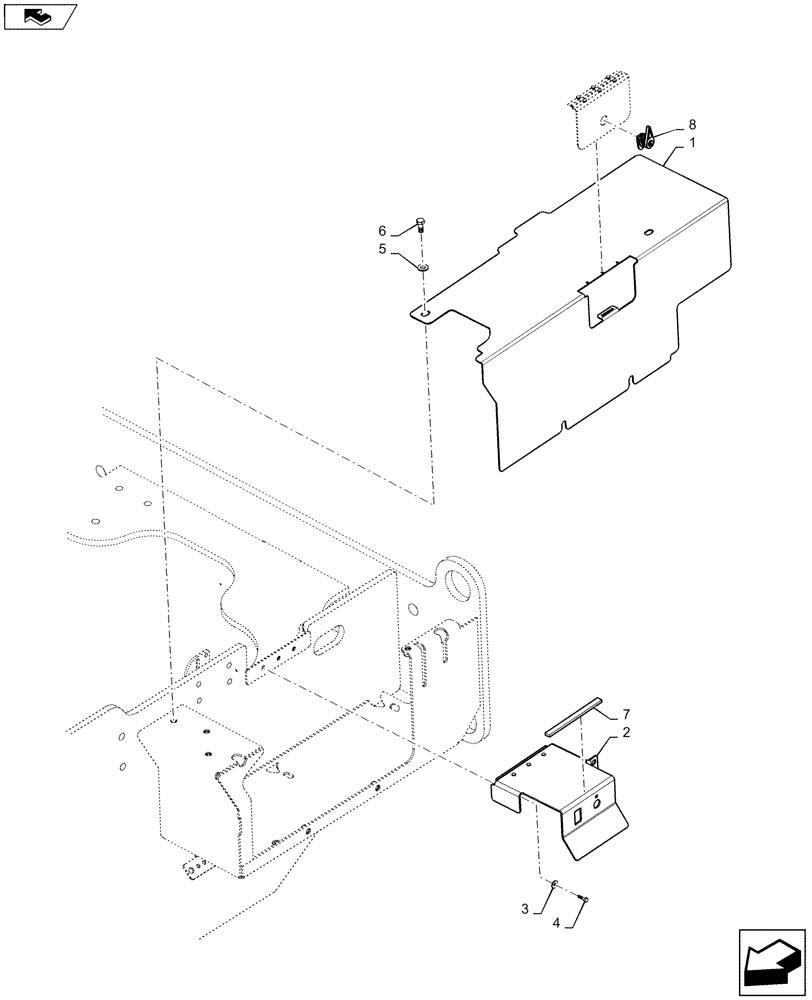

Схема запчастей Case 921F - (39.100.AH[03]) - BATTERY CASE COVER (39) - FRAMES AND BALLASTING
3
8
7
4
5
1
2
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47443352

COVER

Battery, Left Hand

1шт.

2

47442953

BRACKET

Hood Switch

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

7

87591165

SEAL

Switch

1шт.

8

8602791

LOCK

1шт.

Выбрано товаров: 8
