Запчасти Case 921F (35.752.AG) - COOLING FAN RELIEF VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

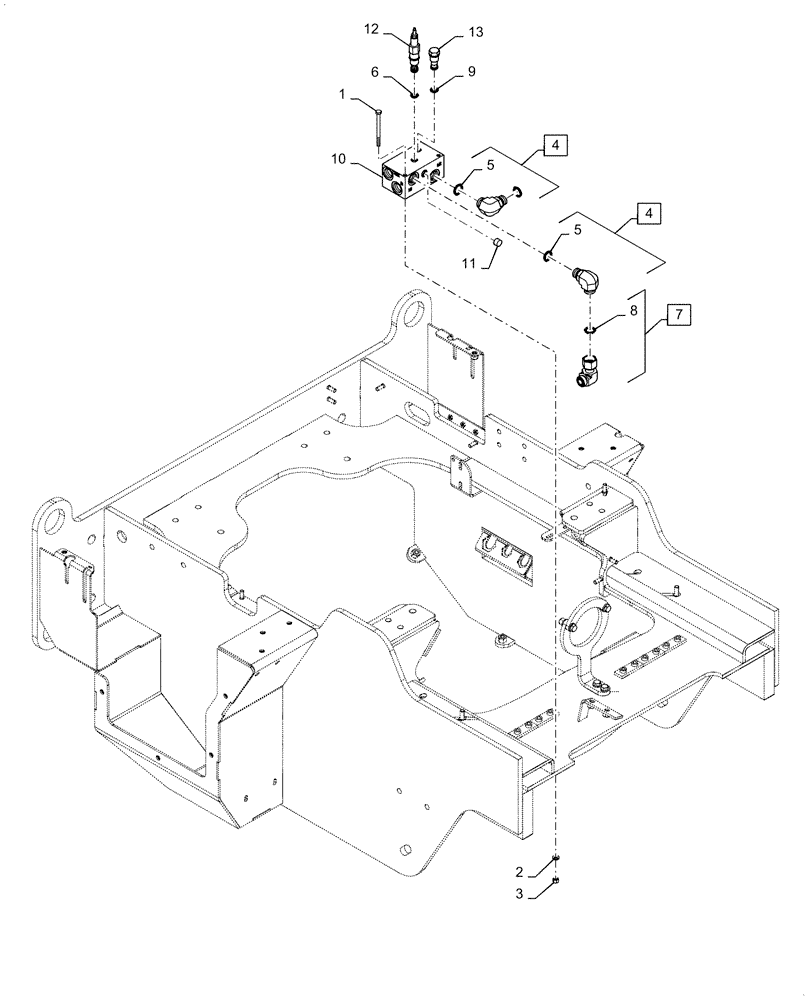

Схема запчастей Case 921F - (35.752.AG) - COOLING FAN RELIEF VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
4
8
4
5
7
5
2
11
6
9
10
3
12
13
1

Артикул

Название

Примечание

Количество

1

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

4

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 5

2шт.

5

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6

1542830C2

SEAL KIT

1шт.

7

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 7

1шт.

8

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

1542830C2

SEAL KIT

1шт.

10

8500562

HYDRAULIC VALVE

Fan Relief

1шт.

11

218-5209

PLUG,Hex, 9/16"-18 ORB

9шт.

12

8605070

VALVE PRESSURE RELIE

Incl 6

1шт.

13

8605073

VALVE, CHECK

Incl 9

1шт.

Выбрано товаров: 13
