Запчасти Case 921F (35.701.AD) - COUPLER SOLENOID LINE INSTALLATION, XR/LR (35) - HYDRAULIC SYSTEMS

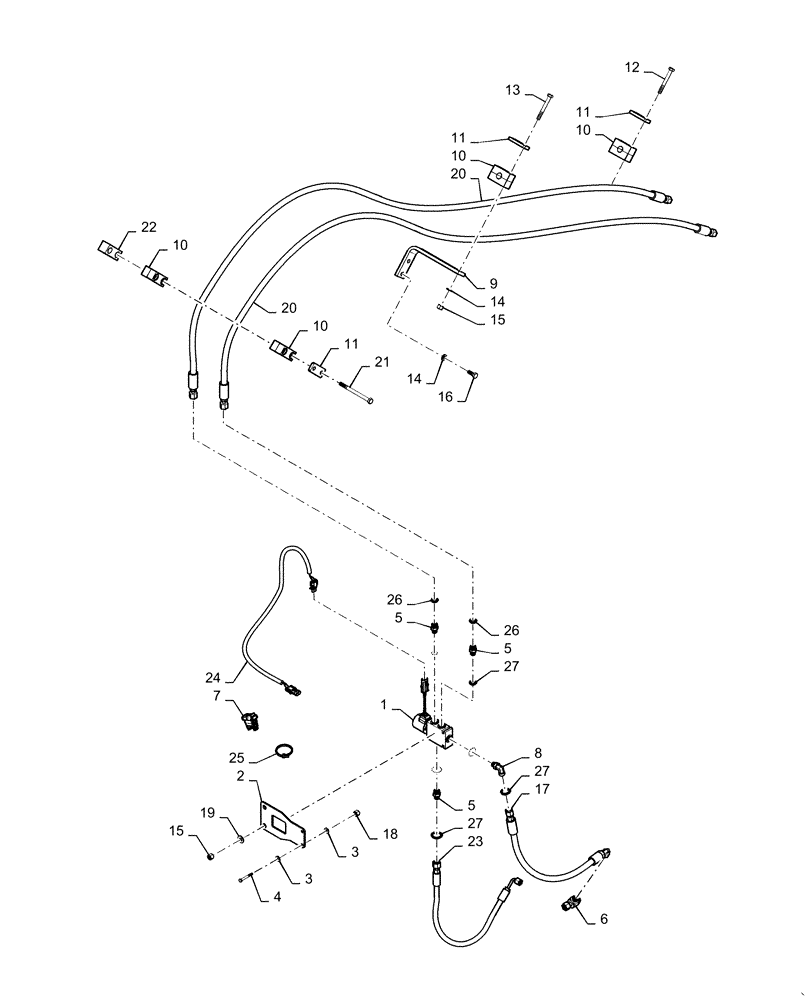

Схема запчастей Case 921F - (35.701.AD) - COUPLER SOLENOID LINE INSTALLATION, XR/LR (35) - HYDRAULIC SYSTEMS
2
9
17
3
27
15
20
21
11
11
5
8
15
10
11
24
13
26
14
10
1
14
5
22
5
10
23
6
19
16
27
10
18
27
4
20
26
3
25
12
7

Артикул

Название

Примечание

Количество

1

84139102

SOLENOID VALVE

Coupler

1шт.

2

84257992

BRACKET, SUPPORTING

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

4

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

3шт.

6

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

7

364444A2

SWITCH

Pin Engage

1шт.

8

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

9

373040A2

BRACKET

Hose Clamp

1шт.

10

379374A1

BLOCK

Tube Mounting

6шт.

11

367658A1

PLATE

Clamp Cover

5шт.

12

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

13

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

17

84426367

HOSE ASSY.

Coupler Pressure

1шт.

18

832-10406

NUT,M6 x 1, Cl 8

2шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

84305114

HYDRAULIC HOSE

Coupler, 821F

2шт.

20

84383896

HOSE ASSY.

Coupler, 921F

2шт.

21

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

2шт.

22

84257994

SPACER

Tube Mounting

1шт.

23

84272271

HOSE ASSY.

Coupler Valve Return, 821F

1шт.

23

84240228

HYDRAULIC HOSE

Coupler Valve Return, 921F

1шт.

24

84302531

WIRE HARNESS

Coupler Valve Jumper

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

26

14437785

O-RING,11.3mm ID x 2.4mm

5шт.

27

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.
