Запчасти Case 921F (35.701.AD) - COUPLER SOLENIOD LINE INSTALLATION, Z-BAR (35) - HYDRAULIC SYSTEMS

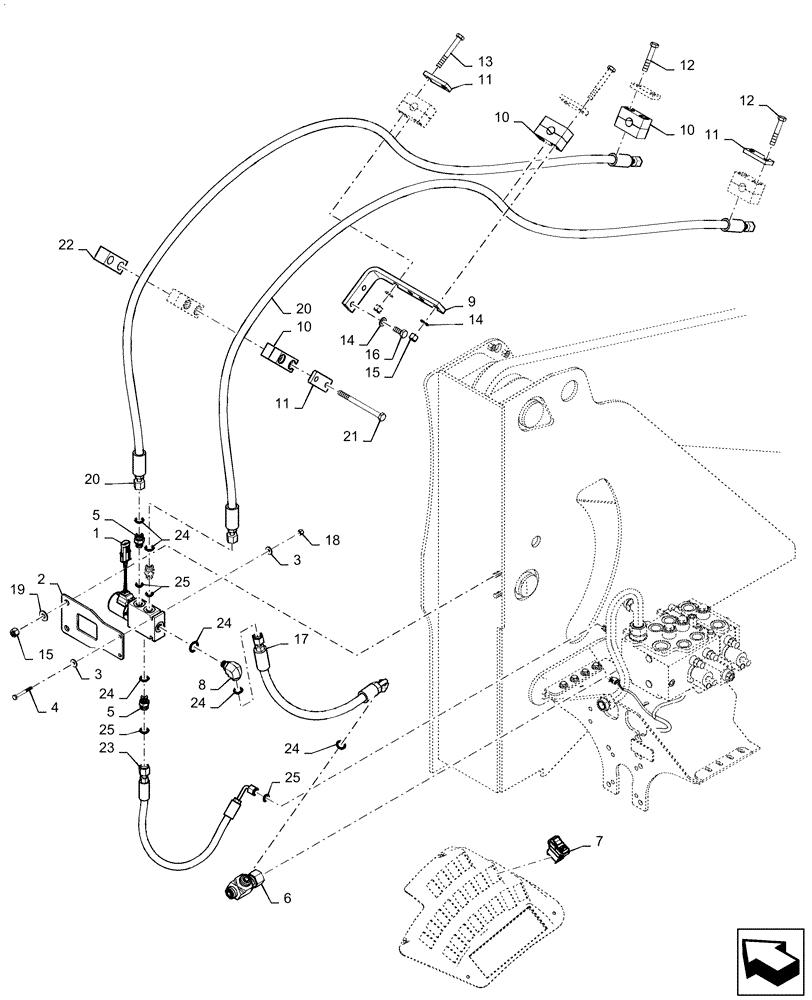

Схема запчастей Case 921F - (35.701.AD) - COUPLER SOLENIOD LINE INSTALLATION, Z-BAR (35) - HYDRAULIC SYSTEMS
4
2
16
5
24
24
11
25
25
8
15
24
12
24
12
7
14
17
5
10
21
1
20
3
25
14
15
6
19
13
9
11
22
11
24
3
10
10
20
18
23

Артикул

Название

Примечание

Количество

1

84139102

SOLENOID VALVE

Coupler

1шт.

2

84257992

BRACKET, SUPPORTING

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

4

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

3шт.

6

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

7

364444A2

SWITCH

Pin Engage

1шт.

8

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

9

373040A2

BRACKET

Hose Clamp

1шт.

10

379374A1

BLOCK

Tube Mounting

6шт.

11

367658A1

PLATE

Clamp Cover

5шт.

12

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

13

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

17

84426367

HOSE ASSY.

Coupler Pressure

1шт.

18

832-10406

NUT,M6 x 1, Cl 8

2шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

84257993

HOSE ASSY.

Coupler

2шт.

21

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

2шт.

22

84257994

SPACER

Tube Mounting

1шт.

23

84272271

HOSE ASSY.

Coupler Valve Return, 821F Only

1шт.

23

84240228

HYDRAULIC HOSE

Coupler Valve Return, 921F Only

1шт.

24

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

25

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

Выбрано товаров: 26
