Запчасти Case 921F (35.359.AJ) - TWO AND THREE SPOOL CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

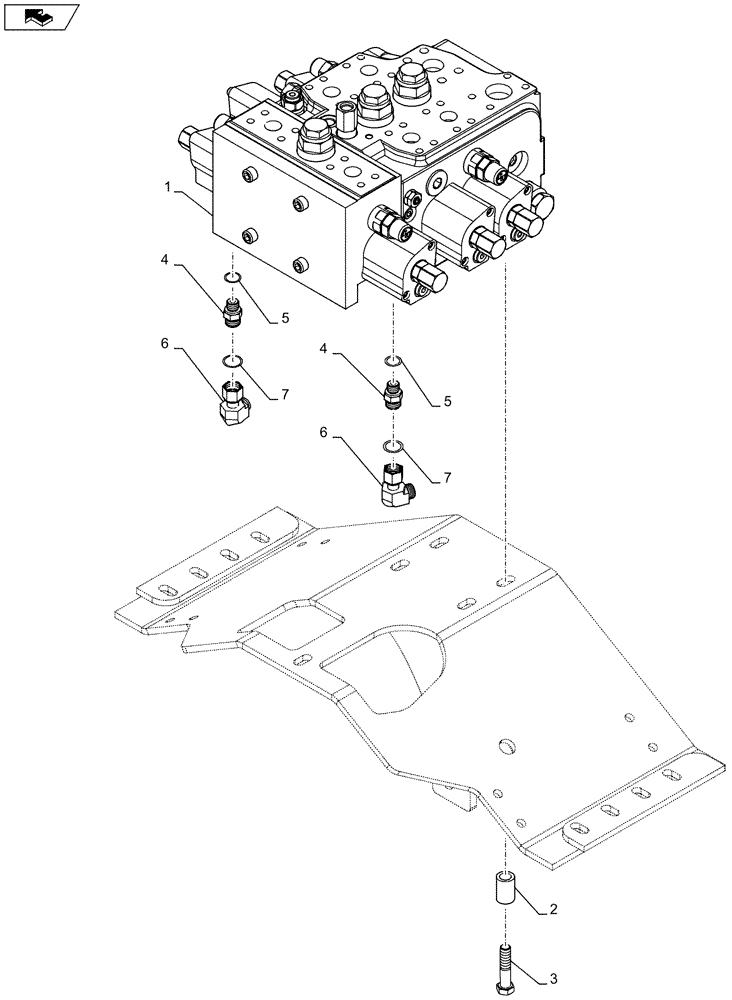

Схема запчастей Case 921F - (35.359.AJ) - TWO AND THREE SPOOL CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
1
5
7
home
2
3
6
5
4
4
7
6

Артикул

Название

Примечание

Количество

1

87539282

VALVE

Three Spool Valve 821F

1шт.

1

87539278

VALVE

Two Spool Valve 821F

1шт.

1

84240719

VALVE

Three Spool Valve 921F

1шт.

1

84240716

VALVE

Two Spool 921F

1шт.

2

A27328

SPACER

3шт.

3

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

4

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

3 Spool Valve Only

2шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3 Spool Valve Only

2шт.

6

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

3 Spool Valve, 921F Only

2шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

Выбрано товаров: 10
