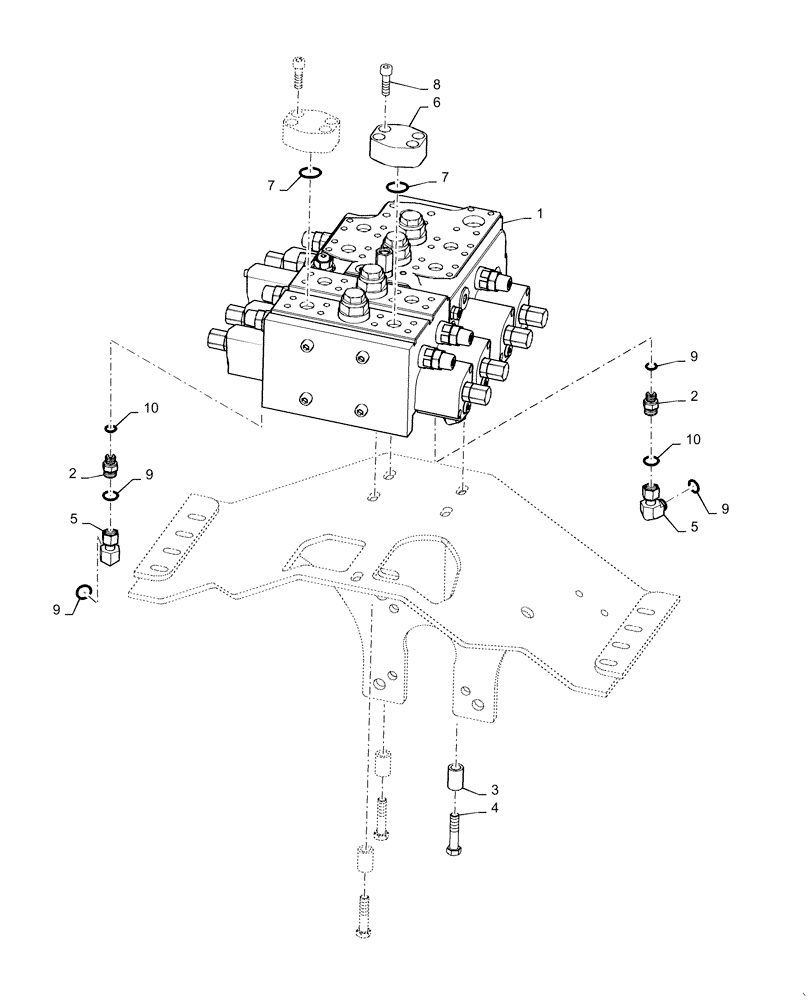

Запчасти Case 921F (35.359.AJ[01]) - FOUR SPOOL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84240722

VALVE

Spool

1шт.

2

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

4шт.

3

A27328

SPACER

3шт.

4

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

5

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

4шт.

6

84312235

BLOCK

2шт.

7

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

8

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

8шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.
