Запчасти Case 921F (35.359.AF[05]) - THREE LEVER CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

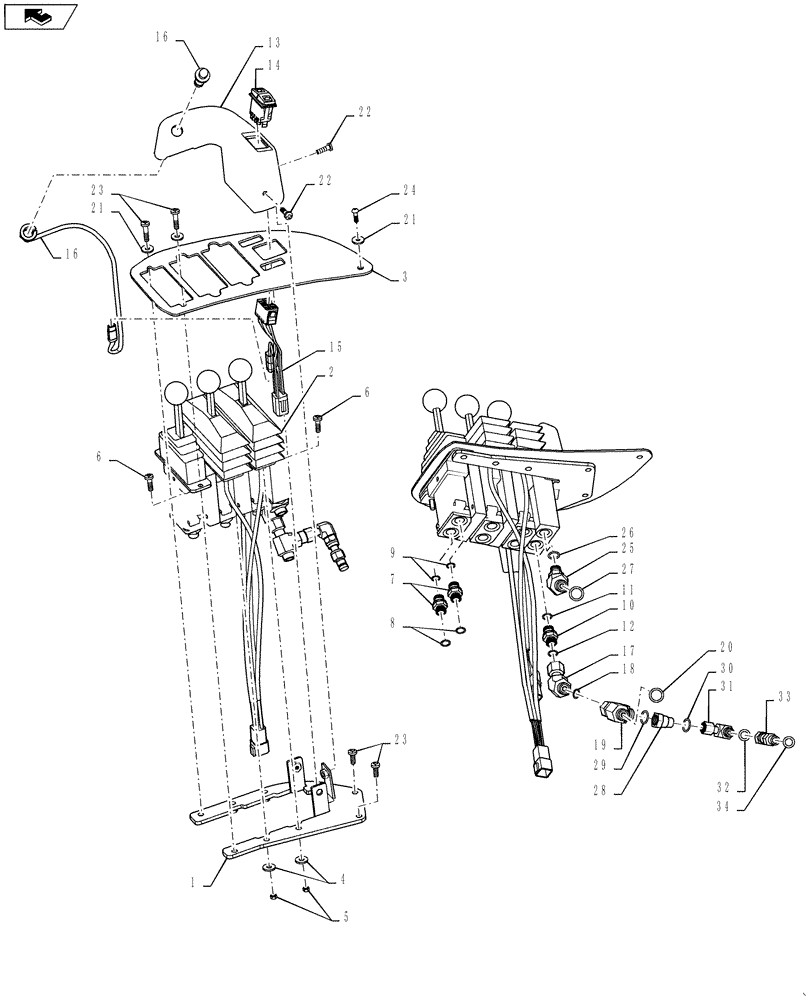

Схема запчастей Case 921F - (35.359.AF[05]) - THREE LEVER CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS
20
9
17
21
10
1
18
28
23
30
11
21
16
27
33
22
19
3
home
25
16
12
7
24
6
23
22
34
6
29
15
4
5
21
31
2
8
32
14
26
13

Артикул

Название

Примечание

Количество

1

87534053

BRACKET

Controller

1шт.

2

407869A2

VALVE, CONTROL

3 Lever Loader Control

1шт.

3

87515559

BEZEL

3 Lever Loader Control

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

7

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

6шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

6шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

87523729

COVER

Switch

1шт.

14

400833A2

SWITCH

F-N-R

1шт.

15

87324389

WIRE HARNESS

F-N-R Switch

1шт.

16

402390A1

SWITCH

Downshift

1шт.

17

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

19

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

21

47368445

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

22

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

2шт.

23

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

5шт.

24

1270762C1

SELF-TAP SCREW

1шт.

25

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

28

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

32

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

33

190117A1

COUPLING

Diagnostic

1шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 34
