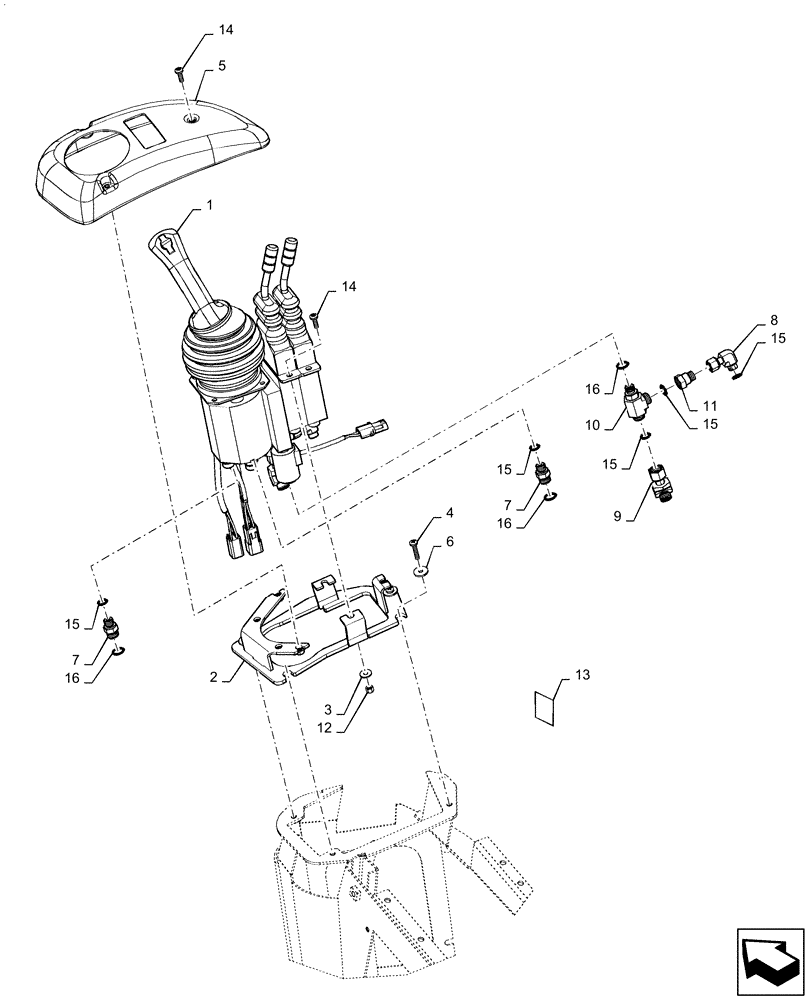

Запчасти Case 921F (35.359.AF[04]) - JOYSTICK WITH TWO LEVER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87340019

JOYSTICK

and 2 Lever

1шт.

2

87516506

ADAPTER

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

5

87638912

BEZEL

1шт.

6

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

7

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

9шт.

8

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

9

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

1шт.

10

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

11

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

87536096

DECAL

1шт.

14

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

7шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

13шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

11шт.
