Запчасти Case 921F (35.359.AF[01]) - JOYSTICK CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

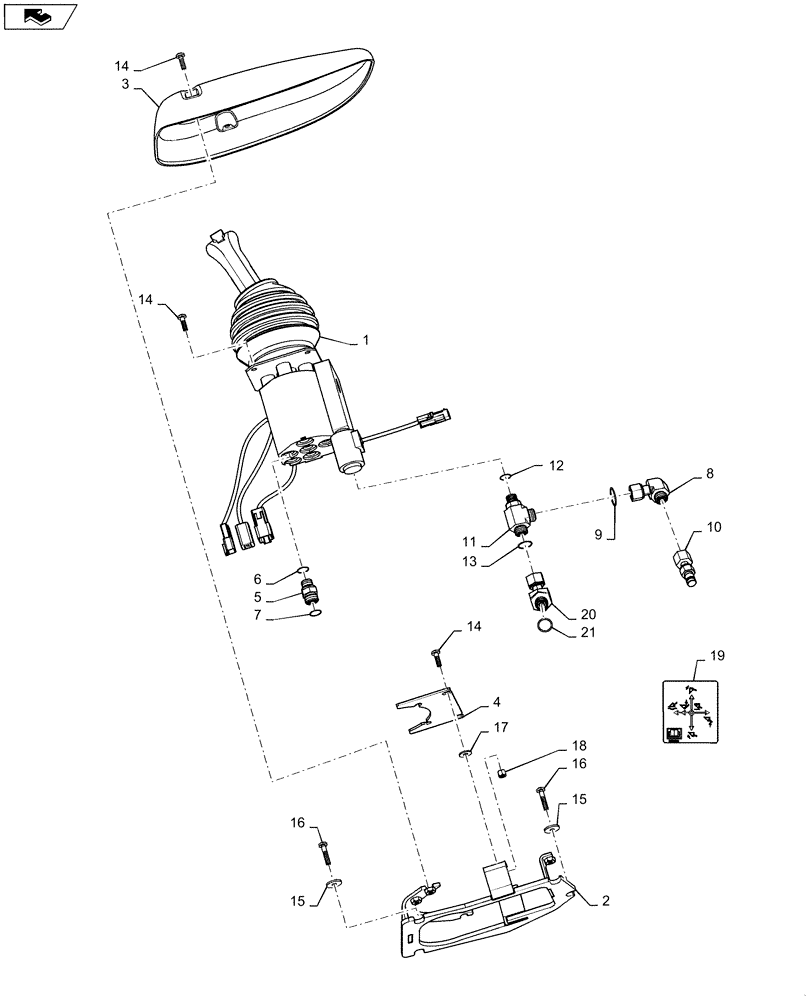

Схема запчастей Case 921F - (35.359.AF[01]) - JOYSTICK CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS
14
3
19
15
13
11
2
6
16
18
9
20
7
1
4
home
5
21
12
17
15
14
8
16
10
14

Артикул

Название

Примечание

Количество

1

87340016

JOYSTICK

Control

1шт.

2

87516506

ADAPTER

Bracket

1шт.

3

87638910

BEZEL

Joystick

1шт.

4

87349019

ADAPTER

No Accessory Levers

1шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

5шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

5шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

8

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

190119A1

COUPLING

Diagnostic

1шт.

11

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

9шт.

15

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

16

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

18

832-10406

NUT,M6 x 1, Cl 8

4шт.

19

87536094

DECAL

Joystick Control

1шт.

20

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
