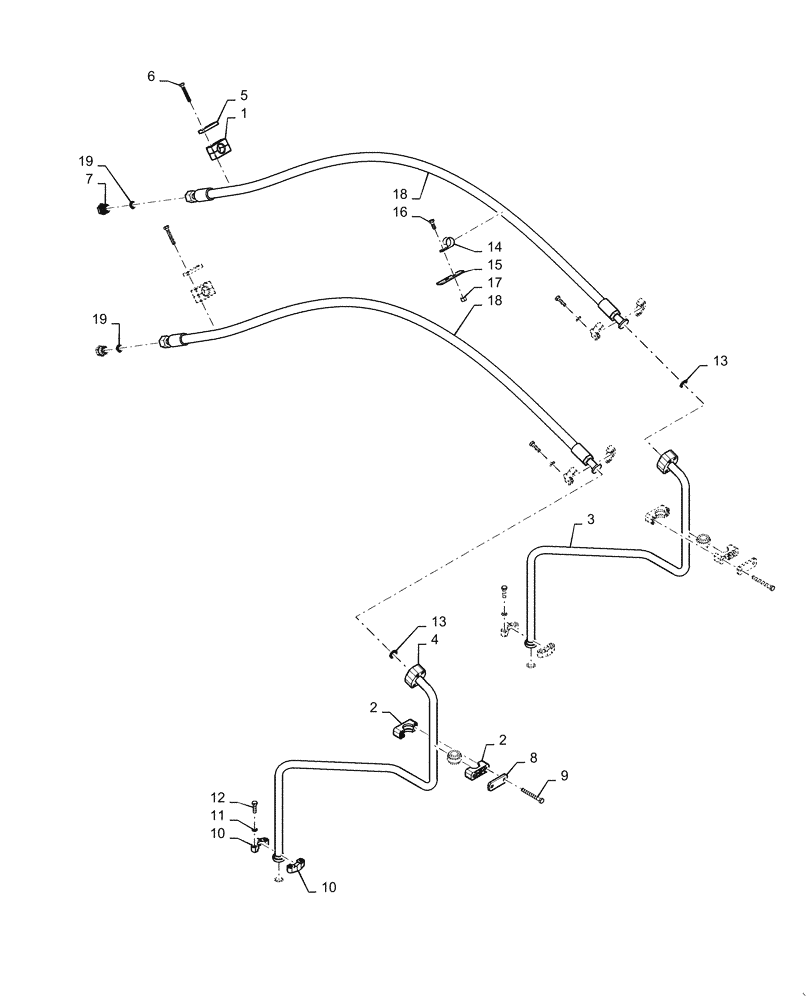

Запчасти Case 921F (35.359.AE) - ACCESSORY LINE INSTALLATION, XR/LR (35) - HYDRAULIC SYSTEMS

1

372453A1

BLOCK

Tube Mounting

2шт.

2

84240207

ASSEMBLY

2шт.

3

84257989

HYD TUBE

Right Hand

1шт.

4

84257987

HYD TUBE

Left Hand

1шт.

5

367658A1

PLATE

Clamp Cover

2шт.

6

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

7

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

2шт.

8

8500858

PLATE

Clamp Cover

2шт.

9

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

10

86980731

CLAMP

8шт.

11

892-11010

LOCK WASHER,M10

16шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

13

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

4шт.

14

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

4шт.

15

84374039

BRACKET

2шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

84383894

HOSE ASSY.

Accessory

2шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
