Запчасти Case 921F (35.300.BC) - THERMAL BYPASS VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

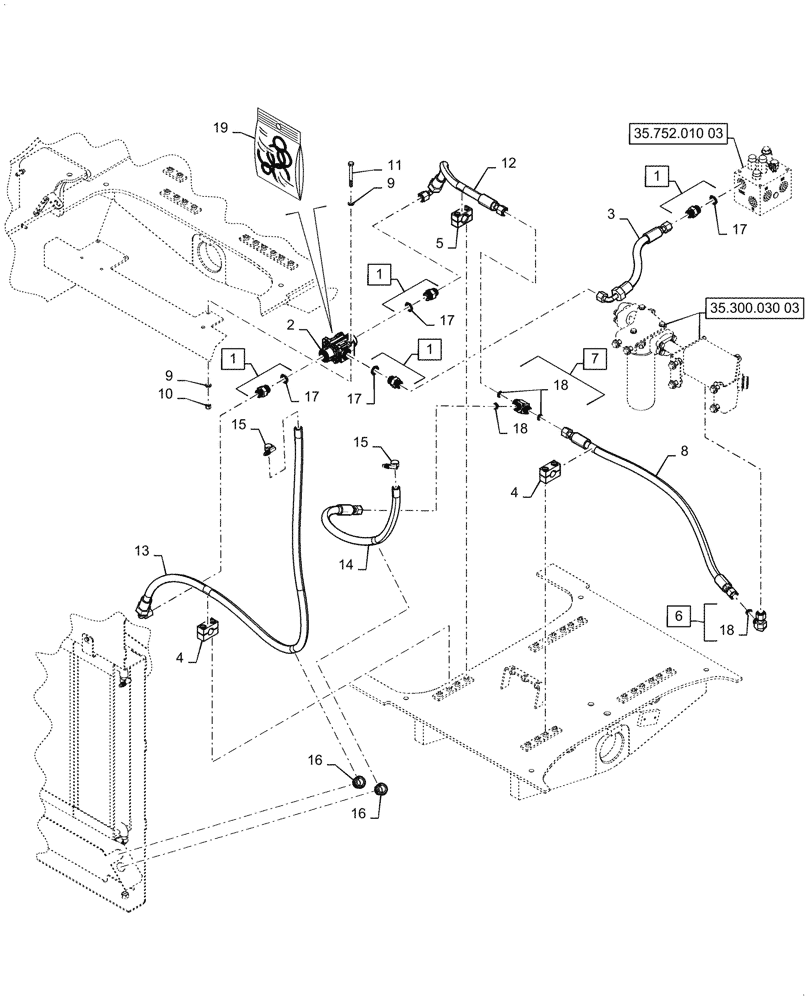

Схема запчастей Case 921F - (35.300.BC) - THERMAL BYPASS VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
35.752.010 03
9
6
1
16
18
15
14
1
4
16
10
11
4
17
9
17
1
2
15
7
18
18
12
19
17
17
8
1
5
3
13
35.300.030 03

Артикул

Название

Примечание

Количество

1

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 17

4шт.

2

87326981

BY-PASS VALVE

Thermal

1шт.

3

87617171

HOSE ASSY.

Fan To Bypass

1шт.

4

367489A1

BLOCK

Tube Mounting

2шт.

5

372453A1

BLOCK

1шт.

6

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 18

1шт.

7

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 18

1шт.

8

87453786

FLEXIBLE HOSE

Junction to Filter

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

12

48013766

HOSE

Bypass to Junction

1шт.

13

84337098

HOSE ASSY.

Bypass to Cooler

1шт.

14

84337099

HOSE ASSY.

Cooler to Junction

1шт.

15

328186A1

HOSE CLAMP

2шт.

16

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

2шт.

17

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

19

87328377

REPAIR KIT

Thermal By-pass Valve

1шт.

Выбрано товаров: 19
