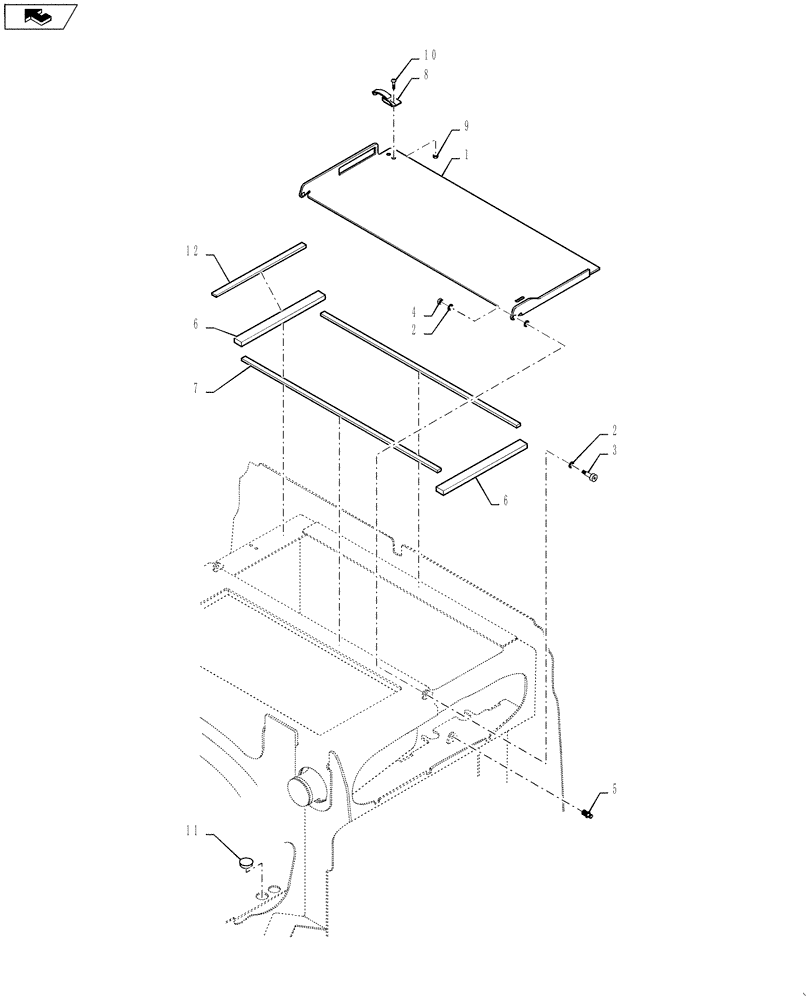

Запчасти Case 921F (35.300.AI) - CAB WITHOUT AIR CONDITIONING COVERS (35) - HYDRAULIC SYSTEMS

1

84180094

PLATE

Without Bracket For Gas Spring

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

3

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

350662A1

STUD

2шт.

6

8602498

SEALING STRIP,25mm W x 294mm L x 13mm Thk

1шт.

7

8500133

OIL SEAL

Oil Cooler; Side

2шт.

8

60-4640T1

LATCH

1шт.

9

225-14108

NUT,#8-32

2шт.

10

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

11

353-414

PLUG,Dome, 1.375" Hole, Nylon

2шт.

12

87432328

SEAL

1шт.
