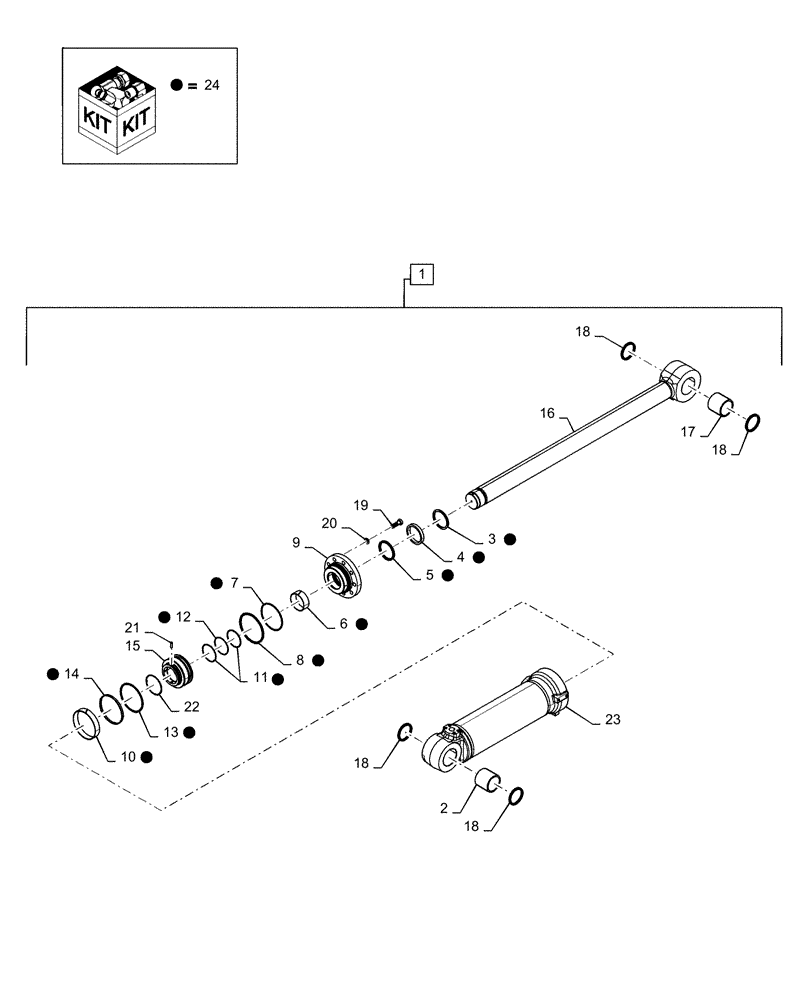

Запчасти Case 921F (35.100.BI[02]) - TILT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

84327736

CYLINDER,Double Acting, 101.6mm Rod, 600mm Stroke

Z-Bar Incl 1 - 23

1шт.

1

84315573

CYLINDER,Double Acting, 101.6mm Rod, 600mm Stroke

XR Bar Incl 1 - 23

1шт.

2

84264085

BUSHING,89.19mm ID x 104.87mm OD x 52mm L

2шт.

3

S92653

WIPER

Wiper

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Rod Incl in 24

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Buffer Incl in 24

1шт.

6

1346213C1

BUSHING

Rod

1шт.

7

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

Backup

1шт.

8

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

9

84327729

GLAND

1шт.

10

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

177.8 Dia.

1шт.

11

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

1шт.

12

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

13

S110156

SEALING RING,6.86mm Thk x 157.86mm ID

Ring

1шт.

14

87399595

SEAL,172.11mm ID x 179.58mm OD x 9.32mm Thk

Piston

1шт.

15

84327727

PISTON

1шт.

16

84327734

ROD,101.6mm OD x 1251mm L

Z-Bar

1шт.

16

84315572

ROD,101.6mm OD x 1705.4mm L

XR Bar

1шт.

17

84264085

BUSHING,89.19mm ID x 104.87mm OD x 52mm L

2шт.

18

S92653

WIPER

4шт.

19

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

9шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

9шт.

21

G106602

LOCK PIN

Locking

1шт.

22

1346328C1

CIRCLIP

1шт.

23

NSS

NOT SOLD SEPARAT

Tube, Incl In 1

1шт.

24

84327732

KIT

Service Kit

1шт.
