(35.100.AR[03]) - TILT CYLINDER INSTALLATION

Запчасти Case 921F (35.100.AR[03]) - TILT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

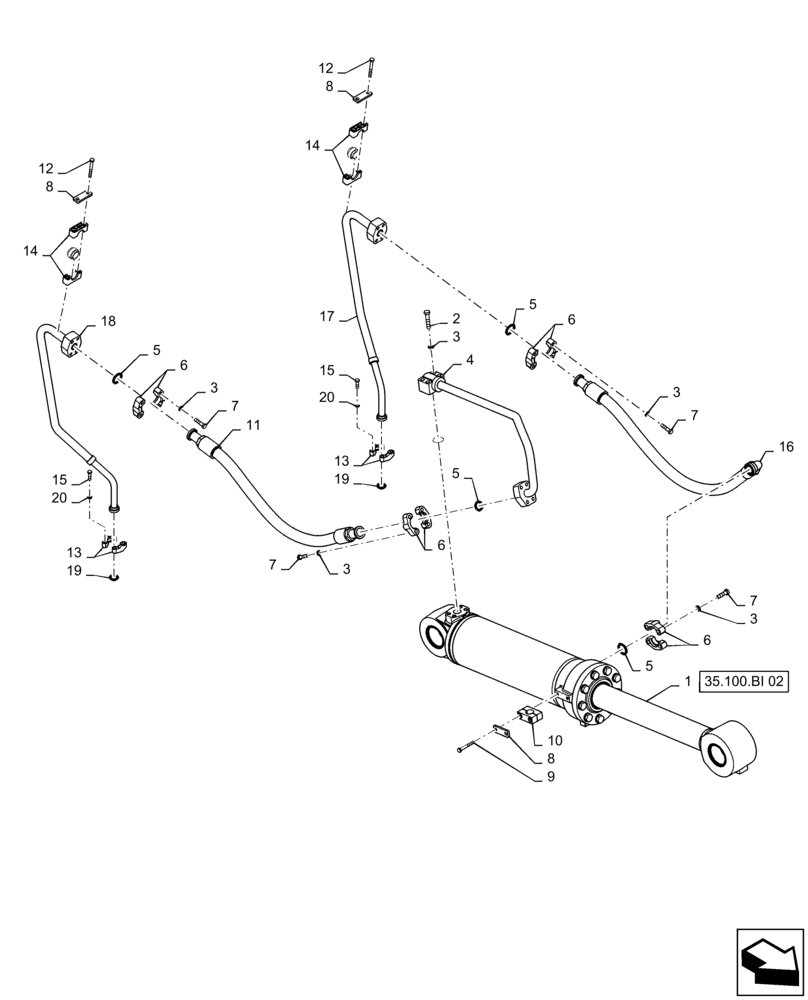

Схема запчастей Case 921F - (35.100.AR[03]) - TILT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS
20
6
5
9
5
5
14
7
6
8
13
3
17
14
3
5
19
3
18
20
19
12
16
13
15
3
8
15
4
3
11
7
14
35.100.bi 02
10
7
2
6
12
8
6
1
7
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84315573

CYLINDER,Double Acting, 101.6mm Rod, 600mm Stroke

Tilt Cylinder Z Bar XR/LR

1шт.

1

84327736

CYLINDER,Double Acting, 101.6mm Rod, 600mm Stroke

Tilt Cylinder Z Bar

1шт.

2

827-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

4шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

20шт.

4

84256915

HYD TUBE

Tilt Cylinder

1шт.

5

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

5шт.

6

86980733

CLAMP

2шт.

7

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

4шт.

8

8500858

PLATE

3шт.

9

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

10

87452747

CLAMP,33.4mm ID

1шт.

11

84257975

HOSE ASSY.

Tilt Base

1шт.

12

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

13

86980731

CLAMP

2шт.

14

84240210

CLAMP,16mm ID

2шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

16

84257976

HOSE ASSY.

Tilt Rod

1шт.

17

84477542

HYD TUBE

Tilt Cylinder Rod

1шт.

18

84477539

HYD TUBE

Tilt Base

1шт.

19

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

20

892-11010

LOCK WASHER,M10

8шт.
