Запчасти Case 921F (21.116.01) - MOUNTING - TRANSMISSION 4 SPEED AND 5 SPEED (21) - TRANSMISSION

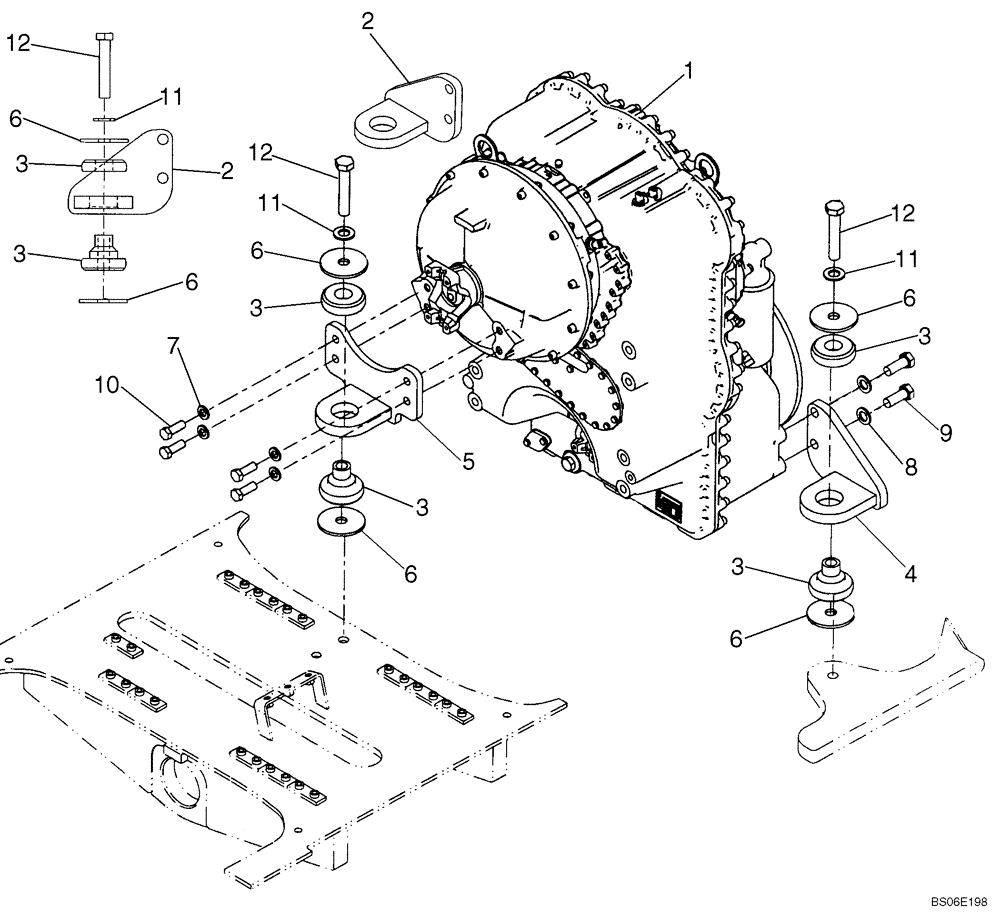

Схема запчастей Case 921F - (21.116.01) - MOUNTING - TRANSMISSION 4 SPEED AND 5 SPEED (21) - TRANSMISSION
2
12
6
1
11
11
12
3
11
6
6
6
9
3
11
10
3
12
3
7
8
4
6
3
3
6
5

Артикул

Название

Примечание

Количество

1

84227495

TRANSMISSION

4 Speed 821F

1шт.

1

84227495R

REMAN-TRANSMISSION

4 Speed 821F

1шт.

1

84227495C

CORE-TRANSMISSION

Return Number

1шт.

1

84238465

TRANSMISSION

4 Speed 921F

1шт.

1

84238465R

REMAN-TRANSMISSION

4 Speed 921F

1шт.

1

84238465C

CORE-TRANSMISSION

Return Number

1шт.

1

84227493

TRANSMISSION

5 Speed 821F

1шт.

1

84227493R

REMAN-TRANSMISSION

5 Speed 821F

1шт.

1

84227493C

CORE-TRANSMISSION

Return Number

1шт.

1

84227475

TRANSMISSION

5 Speed 921F

1шт.

1

84227475R

REMAN-TRANSMISSION

5 Speed 921F

1шт.

1

84227475C

CORE-TRANSMISSION

Return Number

1шт.

2

8500093

BRACKET

Left Hand

1шт.

3

361187A1

ISOLATOR

Transmission Mount

3шт.

4

8500094

BRACKET

Right Hand

1шт.

5

84227480

BRACKET, SUPPORTING

Top

1шт.

6

379611A1

WASHER

Transmission Mount

6шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

11

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

3шт.

12

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

3шт.

Выбрано товаров: 23
