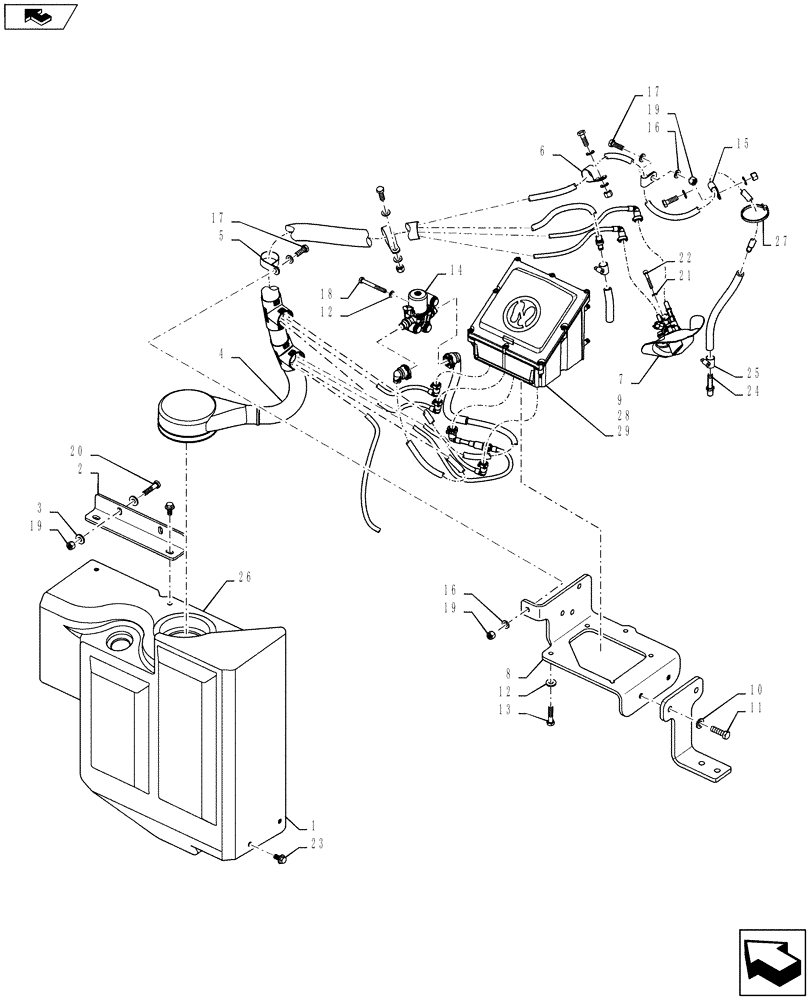

Запчасти Case 921F (10.500.02[01]) - TANK INSTALLATION - UREA (10) - ENGINE

1

84483056

TANK

See Fig. 10.500.02 (02)

1шт.

2

84299672

BRACKET

Tank hold

1шт.

3

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

4

84292040

HOSE ASSY.

For Service Kit See 31

1шт.

5

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

2шт.

6

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

7

84247021

MODULE,Dosing Injector

DE NOX2 UREA DOSING VALVE

1шт.

8

84361377

BRACKET

1шт.

9

84246892

MODULE

1шт.

9

84246892R

REMAN-MODULE

1шт.

9

84246892C

CORE-MODULE

Return Number

1шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

11

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

13

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

14

84151635

HEATER VALVE

1шт.

15

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

16

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10шт.

17

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

5шт.

18

84042348

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

19

190003888452

LOCK NUT,M10, Class 8

M10 cl8

7шт.

20

8900127036

BOLT,Hex, M10 x 45mm, Cl 8.8

2шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

22

84233542

HEX SOC SCREW

M6x40 Class 12.9

3шт.

23

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

24

87017579

FITTING,3/8" Hose X 1/4" NPTF Beaded

1шт.

25

244358

HOSE CLIP,0.44" - 0.78"

2шт.

26

84284896

DECAL,DEF TANK identification label

1шт.

27

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

28

84254852

FILTER

Main Fuel Filter, For cap see 30

1шт.

29

84247272

FILTER,In-Line

In-line Filter

1шт.

30

47401714

FILTER HEAD

1шт.

31

84480652

SVC MAINTENANCE KIT

Service Kit for 4

1шт.
