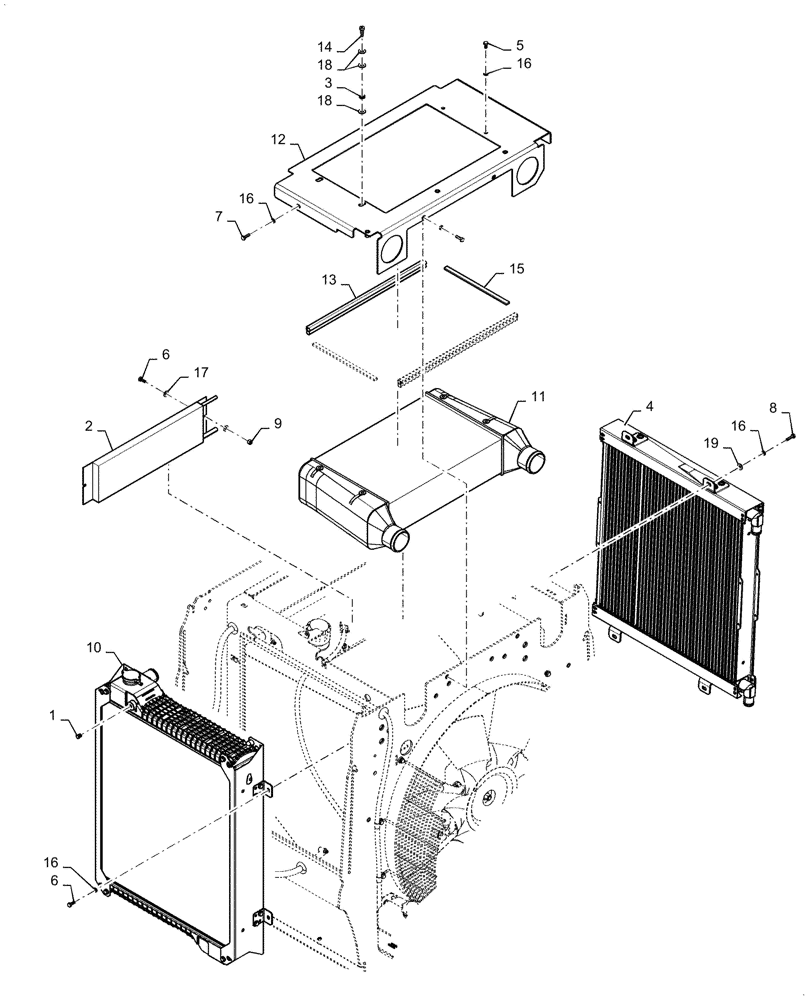

Запчасти Case 921F (10.408.05) - RADIATOR, TRANSMISSION AND HYDRAULIC COOLER INSTALLATION 921F (10) - ENGINE

1

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

2

347615A3

FUEL COOLER

1шт.

3

386040R1

SPRING

Poppet Return

2шт.

4

47909329

COOLER

Oil

1шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

10

84232336

RADIATOR

Assembly

1шт.

11

84251833

COOLER

Charge Air

1шт.

12

84279386

MOUNTING PLATE

Charge Air

1шт.

13

84299135

RUBBER SEAL

2шт.

14

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

15

8500143

FOAM INSULATION,9mm W x 290mm L x 3mm Thk

2шт.

16

892-11008

LOCK WASHER,8mm ID

14шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.
