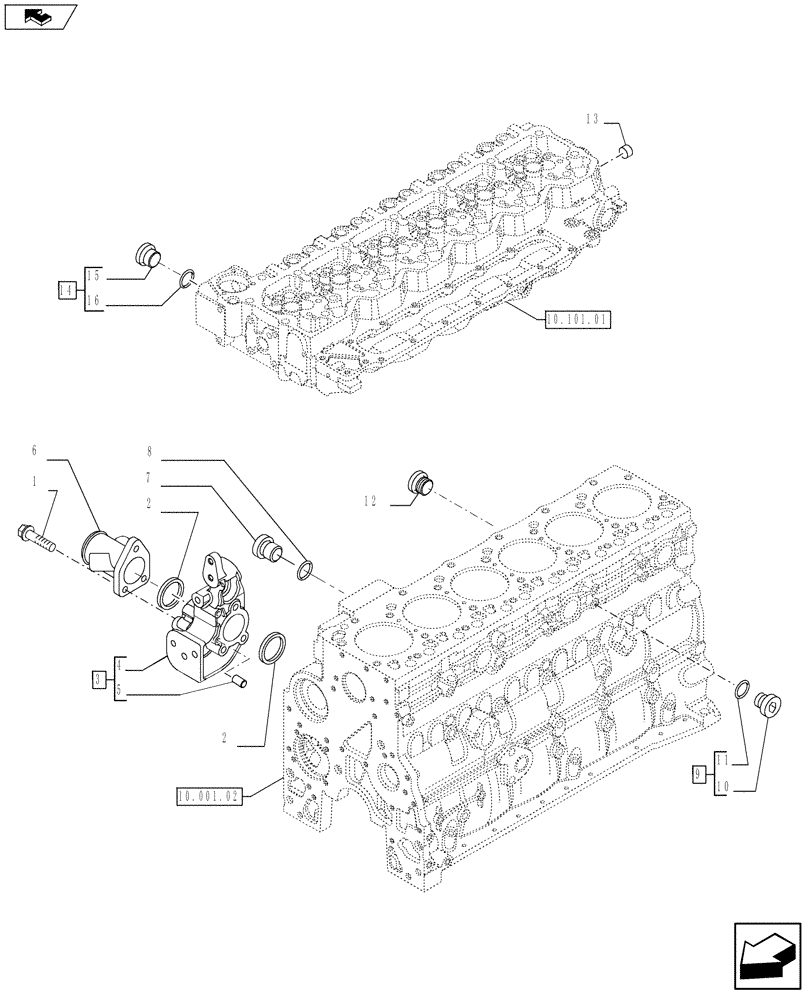

Запчасти Case 921F (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE

1

16592924

SCREW,M10 x 1.5 x 80mm

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

ASSY

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

98405182

DOWEL

2шт.

6

504040659

RIGID TUBE

1шт.

7

16992511

PLUG

ASSY

2шт.

8

2852802

SEALING WASHER

2шт.

9

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

10

4895624

PLUG,M16 x 1.5 x 18mm L

1шт.

11

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

12

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

13

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

15

4895081

PLUG,M22 x 1.5 x 16.5mm L

1шт.

16

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
