Запчасти Case 921F (90.160.04) - CAB, STORAGE COMPARTMENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

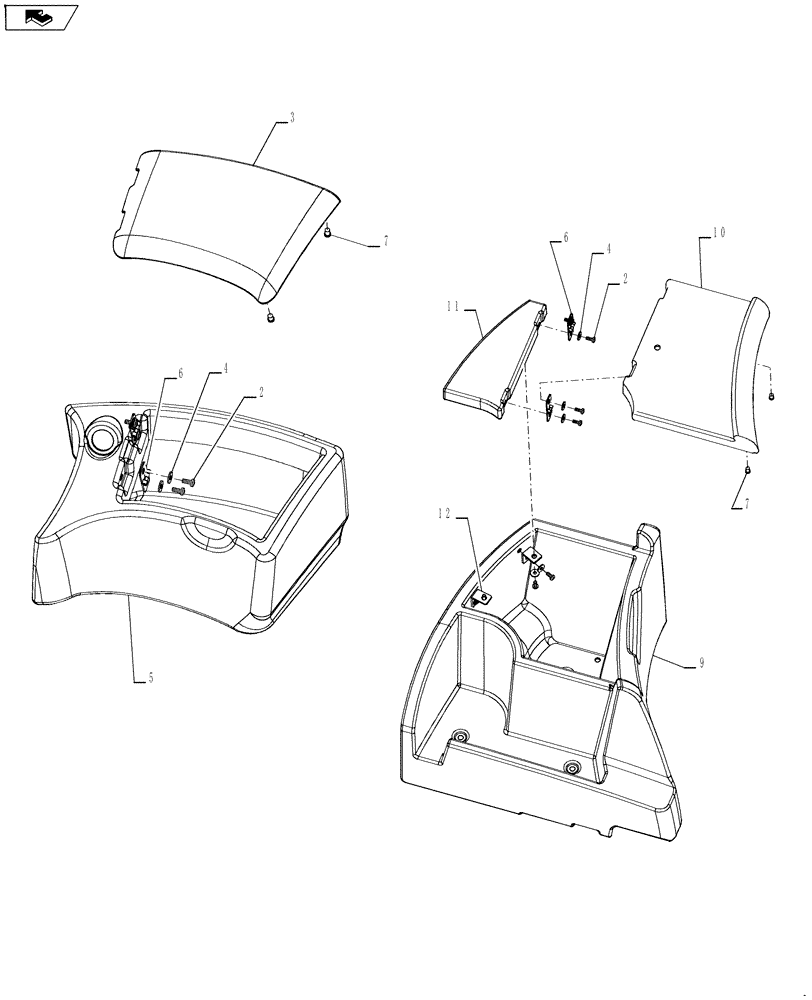

Схема запчастей Case 921F - (90.160.04) - CAB, STORAGE COMPARTMENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
9
11
5
12
7
7
6
2
6
10
3
home
4

Артикул

Название

Примечание

Количество

1

76303042

SUPPORT

Assembly, Incl 2 - 7

1шт.

2

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

12шт.

3

84167316

COVER

Storage Right Side

1шт.

4

895-25005

WASHER,M5 x 15 x 1.6

12шт.

5

84167776

BOX

Storage

1шт.

6

76303262

HINGE

Assembly

4шт.

7

87614173

PLUG

4шт.

8

76303013

BOX

Cool Assembly, Inc. 2,4,6,7, 9-12

1шт.

9

84169676

BOX

Storage Left Side

1шт.

10

76303035

COVER

Cool Box Trim

1шт.

11

76303348

COVER

Trim Cool Box Stationary

1шт.

12

76303437

BRACKET

For Cover

2шт.

Выбрано товаров: 12
