(10.102.04) - COVERS, DRIVE BELT WITH AIR CONDITIONING

Запчасти Case 921F (10.102.04) - COVERS, DRIVE BELT WITH AIR CONDITIONING (10) - ENGINE

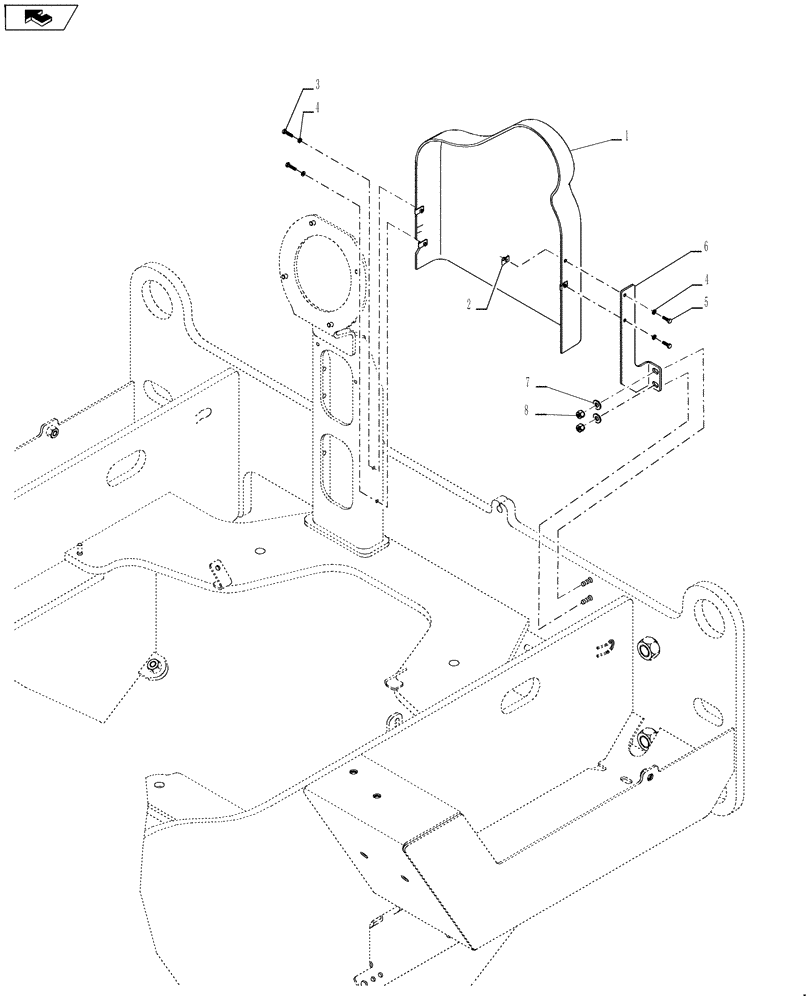

Схема запчастей Case 921F - (10.102.04) - COVERS, DRIVE BELT WITH AIR CONDITIONING (10) - ENGINE
4
3
2
1
4
8
6
7
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8501022

GUARD

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

4

892-11006

LOCK WASHER,M6

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

6

87528976

BRACKET

Engine Guard Mount; Left

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
