Запчасти Case 921F (90.150.06) - CANOPY - COVERS, ANTI-VANDALISM (90) - PLATFORM, CAB, BODYWORK AND DECALS

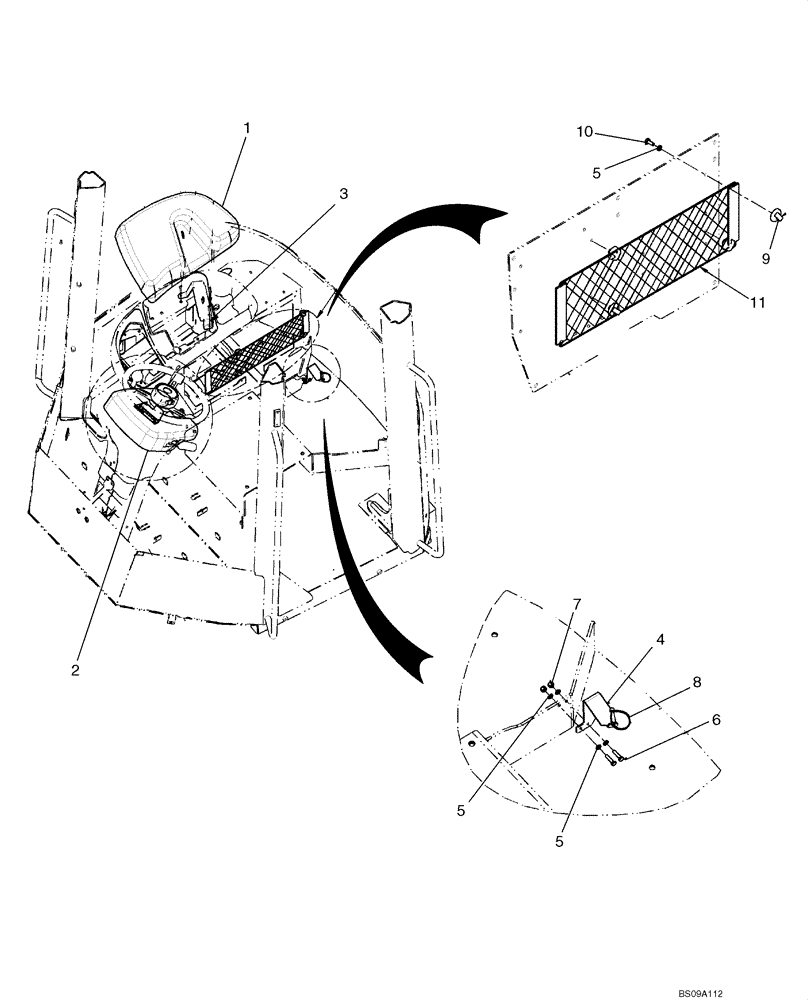

Схема запчастей Case 921F - (90.150.06) - CANOPY - COVERS, ANTI-VANDALISM (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
5
6
5
11
10
9
7
8
2
4
3

Артикул

Название

Примечание

Количество

1

87752867

COVER

RH Console

1шт.

2

84123685

COVER

Steering

1шт.

3

87476903

BRACKET

Anti-Vandalism Lock

1шт.

4

84123686

BRACKET

Anti-Vandalism

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

6

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

9

359037A1

HOOK

Cargo Net

4шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

4шт.

11

433309A1

NET

Cargo

1шт.

Выбрано товаров: 11
