Запчасти Case 921F (90.150.04) - REAR VIEW CAMERA MONITOR, INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

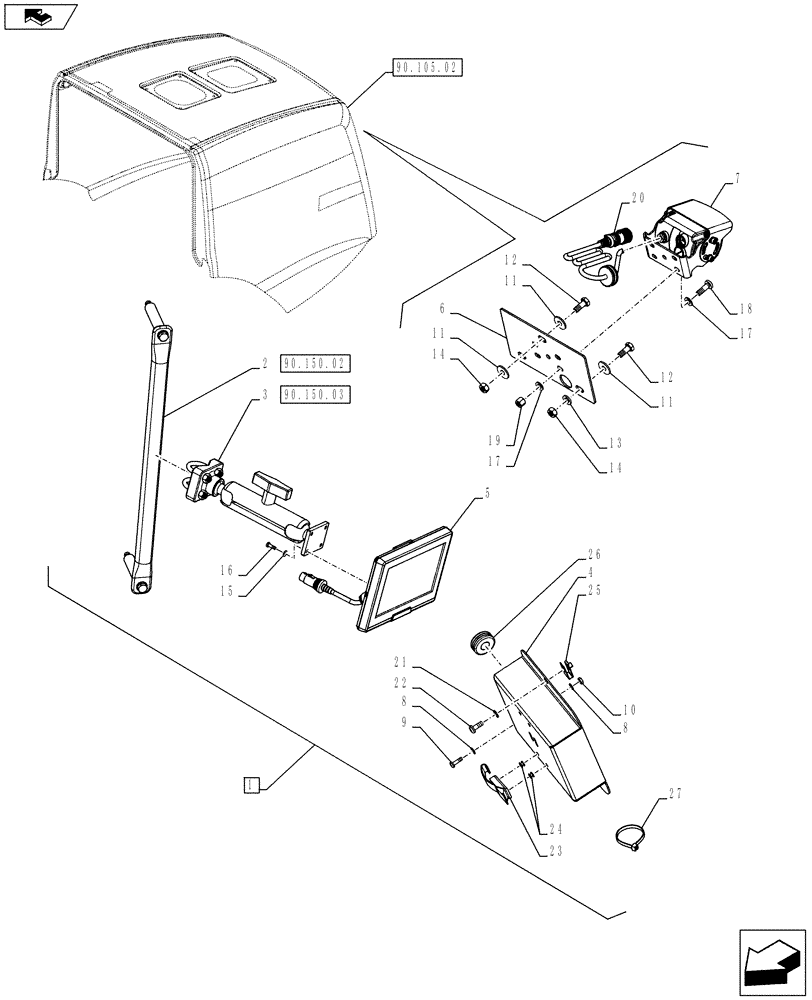

Схема запчастей Case 921F - (90.150.04) - REAR VIEW CAMERA MONITOR, INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
14
9
90.150.02
90.105.02
17
26
23
25
8
12
1
18
home
11
2
15
27
13
16
5
21
24
7
90.150.03
20
12
10
17
11
6
22
8
14
11
3
4

Артикул

Название

Примечание

Количество

1

84336466

MONITOR

Rear View Camera Assembly

1шт.

2

84337434

BAR

Mounting, See Fig.90.150.02

1шт.

3

84336556

ARM

Display Mount See Fig. 90.150.03

1шт.

4

84336673

PLATE

Access Monitor Adaptor

1шт.

5

84337421

MONITOR

7" Color

1шт.

6

84335794

BRACKET

Rearview Camera Mounting

1шт.

7

84315054

VIDEO CAMERA

Assembly

1шт.

8

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

8шт.

9

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

4шт.

10

824-1404

NUT,M4, Cl 5

4шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

12

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

3шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

15

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

16

13296111

SCREW,Phil Pan Hd, M3 x 10mm, Cl 5.8, Full Thd

4шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

18

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

19

832-10405

NUT,M5 x .8, Cl 8

4шт.

20

84317692

WIRE HARNESS

1шт.

21

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

22

297850A1

SCREW,Cross Pan Hd, M6 x 16

2шт.

23

60-4640T1

LATCH

1шт.

24

151-515

RIVET,Pop, .146" x .425"

2шт.

25

404882A1

SPRING NUT,M6

2шт.

26

87300241

GROMMET

Roof

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

15шт.

Выбрано товаров: 27
