Запчасти Case 921F (90.124.02) - SEAT ASSY, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

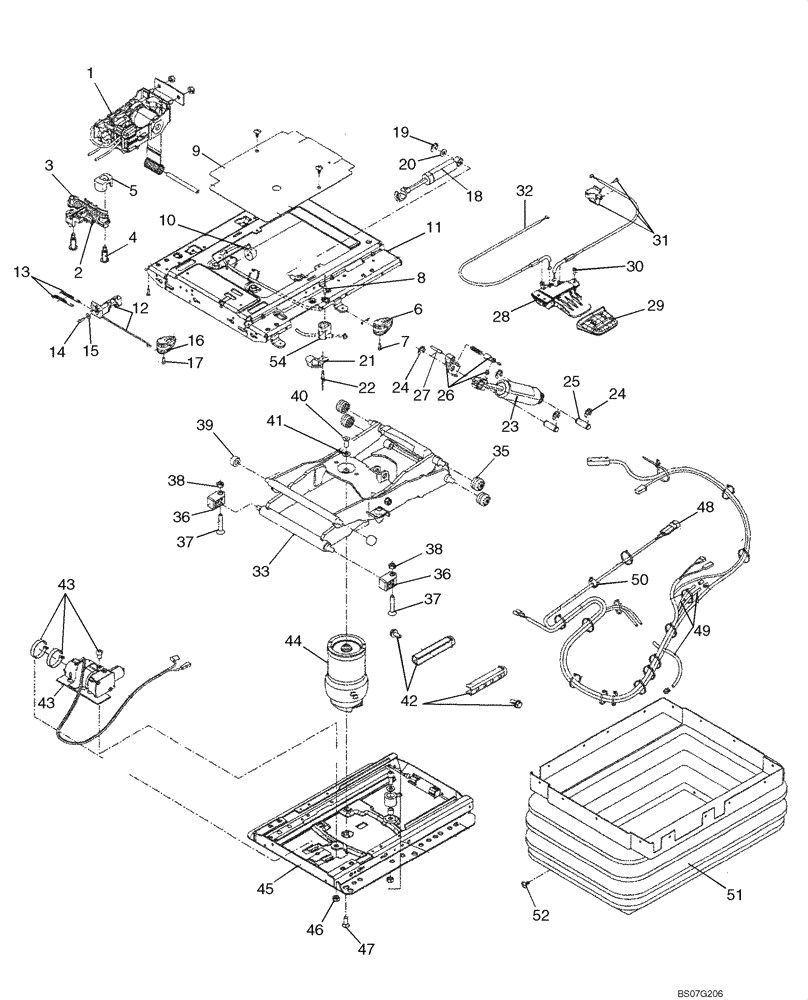

Схема запчастей Case 921F - (90.124.02) - SEAT ASSY, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
37
16
36
40
31
38
43
43
36
2
52
44
45
32
50
46
7
13
14
6
21
10
49
4
29
11
23
28
1
24
17
37
5
8
12
33
27
38
1
18
51
35
15
30
9
9
41
3
24
22
47
39
48
26
42
54
25

Артикул

Название

Примечание

Количество

87398040

SEAT ASSY.

Incl. Refs. 1 - 54 , Incl. Parts on Figure 09-43

1шт.

87584096

SUSPENSION

Cloth, Lower Seat Assembly; Incl. Refs. 1 - 54

1шт.

1

82035095

CONTROL

Kit, Incl. Control Mechanism, Mounting Parts

1шт.

82035111

KIT

Incl. Refs 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Isolator

1шт.

3

82035052

BUSHING

2шт.

4

87585124

SPECIAL BOLT

Shoulder M8 x 33

2шт.

5

NSS

NOT SOLD SEPARAT

Guide

1шт.

82035123

HANDLE

Kit, Incl. Refs. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Handle

1шт.

7

82035087

SCREW,M4 x 14mm

2шт.

8

82035065

RIVET

4 x 16.9 mm

3шт.

9

85817486

COVER

Kit, Incl. (2) Mounting Screws

1шт.

82035122

SUSPENSION

Kit, Incl. Refs. 10 - 15, Also Incl. (2) Roller Kits, (2) Single Rollers, and (2) 4 x 16.9 Rivets, Which Are Not Illustrated

1шт.

10

82035081

PLUG

1шт.

11

NSS

NOT SOLD SEPARAT

Suspension

1шт.

71486982

LEVER & PIN ASSY

Kit, Incl. Refs 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

Lever and Pin

1шт.

13

87584172

SPRING

Tension

2шт.

14

NSS

NOT SOLD SEPARAT

Screw

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

82035073

HANDLE

Kit, Incl. Refs 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Handle

1шт.

17

82035087

SCREW,M4 x 14mm

1шт.

82035079

SHOCK ABSORBER

Kit, Incl. Refs. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

19

85817560

WASHER

E-Clip

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

82035082

STOP

Kit, Incl. Refs. 21, 22

2шт.

21

NSS

NOT SOLD SEPARAT

Stop

1шт.

22

82035065

RIVET

2шт.

87585037

SHOCK ABSORBER

Incl. Refs. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

24

85817496

WASHER

E-Clip, 10mm

4шт.

25

87567829

WASHER

Clevis

2шт.

26

82035116

BEARING

Kit, Cable Connect

1шт.

27

87584102

CABLE

Bowden

1шт.

82035086

LEVER

Kit, Incl. Refs. 28 - 30,

1шт.

28

NSS

NOT SOLD SEPARAT

Lever

1шт.

29

85817492

HANDLE

If Handle needed with switch order 345107A1

1шт.

30

85819815

SCREW,M5 x 16mm

3шт.

31

82035106

CABLE

Kit

1шт.

32

82035075

CABLE

Kit

1шт.

87396449

SUSPENSION

Kit, Incl. Refs. 33 - 41

1шт.

33

NSS

NOT SOLD SEPARAT

Suspension

1шт.

34

82035126

BUMPER

2шт.

35

82035057

ROLLER

4шт.

36

87567830

THRUST BEARING

Thrust

2шт.

37

NSS

NOT SOLD SEPARAT

Bolt

2шт.

38

NSS

NOT SOLD SEPARAT

Nut

2шт.

39

82035130

ROLLER

2шт.

40

NSS

NOT SOLD SEPARAT

Screw

2шт.

41

NSS

NOT SOLD SEPARAT

Washer

2шт.

42

47335175

STOP

Incl. Mounting Hardware

1шт.

43

345125A1

AIR COMPRESSOR KIT

1шт.

44

87396450

SPRING

Kit

1шт.

398148A1

BASE

Kit, Incl. Refs. 35, 36, 42, 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

Lower Suspension

1шт.

46

NSS

NOT SOLD SEPARAT

Nut

2шт.

47

NSS

NOT SOLD SEPARAT

Screw

1шт.

48

87584100

CABLE

Connecting

1шт.

49

82035077

HOSE KIT

1шт.

50

87584103

CLAMP

Cable

1шт.

82035078

BELLOWS

Kit, Incl. Refs. 51, 52

1шт.

51

NSS

NOT SOLD SEPARAT

Bellows

1шт.

52

NSS

NOT SOLD SEPARAT

Screw

22шт.

53

87583859

CONSOLE

Not Illustrated

1шт.

54

82035071

GUIDE

Cable Holder

1шт.

82848105

KIT

Wear Parts, Incl. Refs. 3, 8, 10, 34, 35, 36, 39, 42, 46, 47, 52

1шт.
