Запчасти Case 921F (90.118.04) - RIGHT STEP WIDE INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

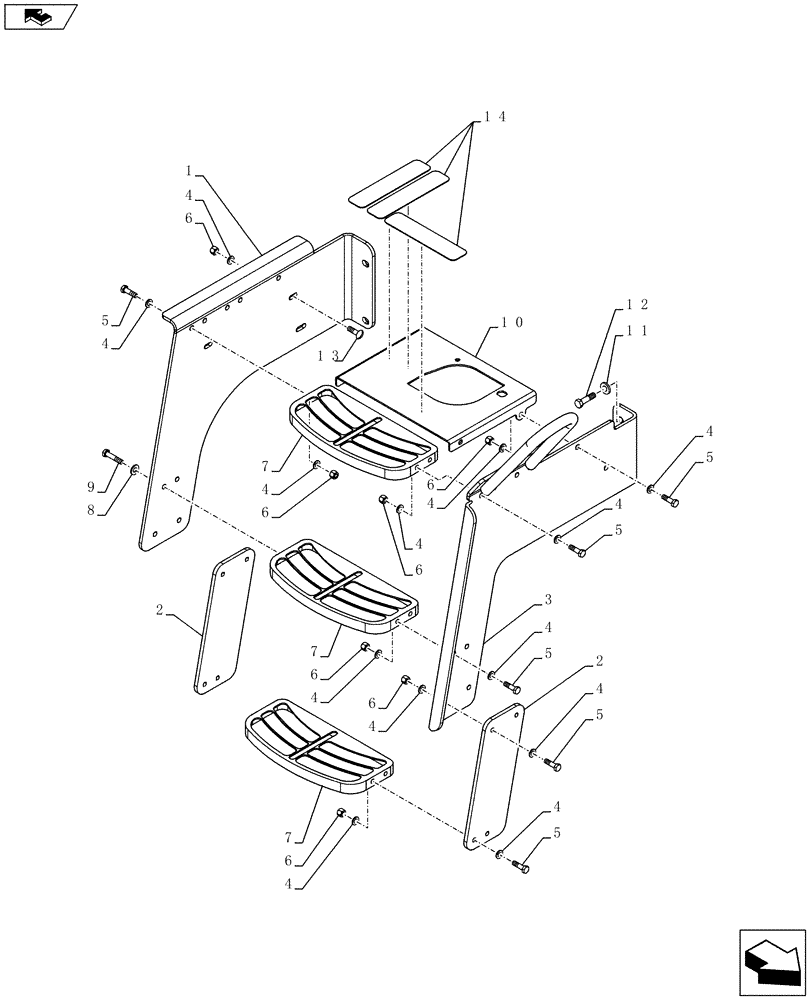

Схема запчастей Case 921F - (90.118.04) - RIGHT STEP WIDE INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
10
7
4
7
4
5
6
4
2
4
4
12
4
4
6
6
14
5
3
6
4
5
6
6
4
4
4
home
4
5
11
13
7
5
1
5
9
8
6
2

Артикул

Название

Примечание

Количество

1

84257938

BRACKET, SUPPORTING

Right Hand Step Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

84257934

BRACKET, SUPPORTING

Right Hand Step Front

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

42шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

19шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

23шт.

7

87434472

STEP

Step

3шт.

8

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

2шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

84374000

PLATFORM

Right Hand Steps

1шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

12

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

13

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

2шт.

14

D55216

PAD,2" x 9"

3шт.

Выбрано товаров: 14
