Запчасти Case 921F (90.118.03) - LEFT STEP WIDE INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

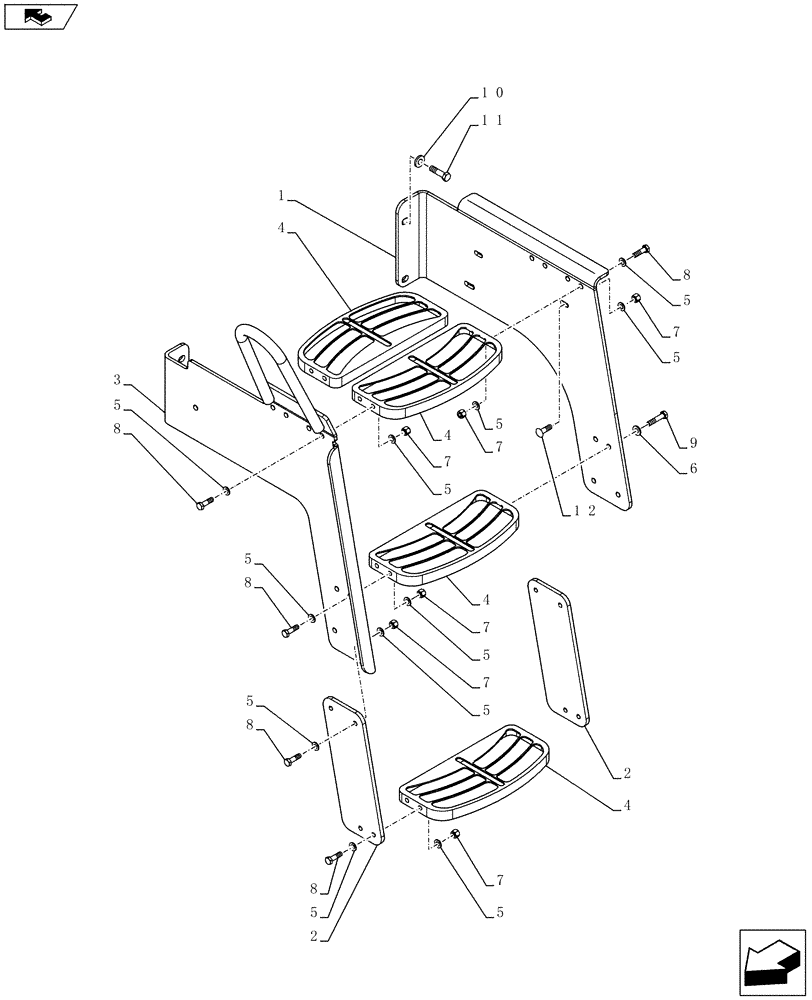

Схема запчастей Case 921F - (90.118.03) - LEFT STEP WIDE INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
8
5
7
7
1
7
11
10
5
8
2
5
home
5
5
5
5
5
4
2
5
5
5
8
6
4
8
4
7
9
12
4
3
8
7

Артикул

Название

Примечание

Количество

1

84194984

BRACKET

Left Hand Step Support Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

84297998

BRACKET, SUPPORTING

Left Hand Step Support Front

1шт.

4

87434472

STEP

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

40шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

18шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

11

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

12

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

2шт.

Выбрано товаров: 12
