Запчасти Case 921F (90.116.08) - FENDERS, REAR WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

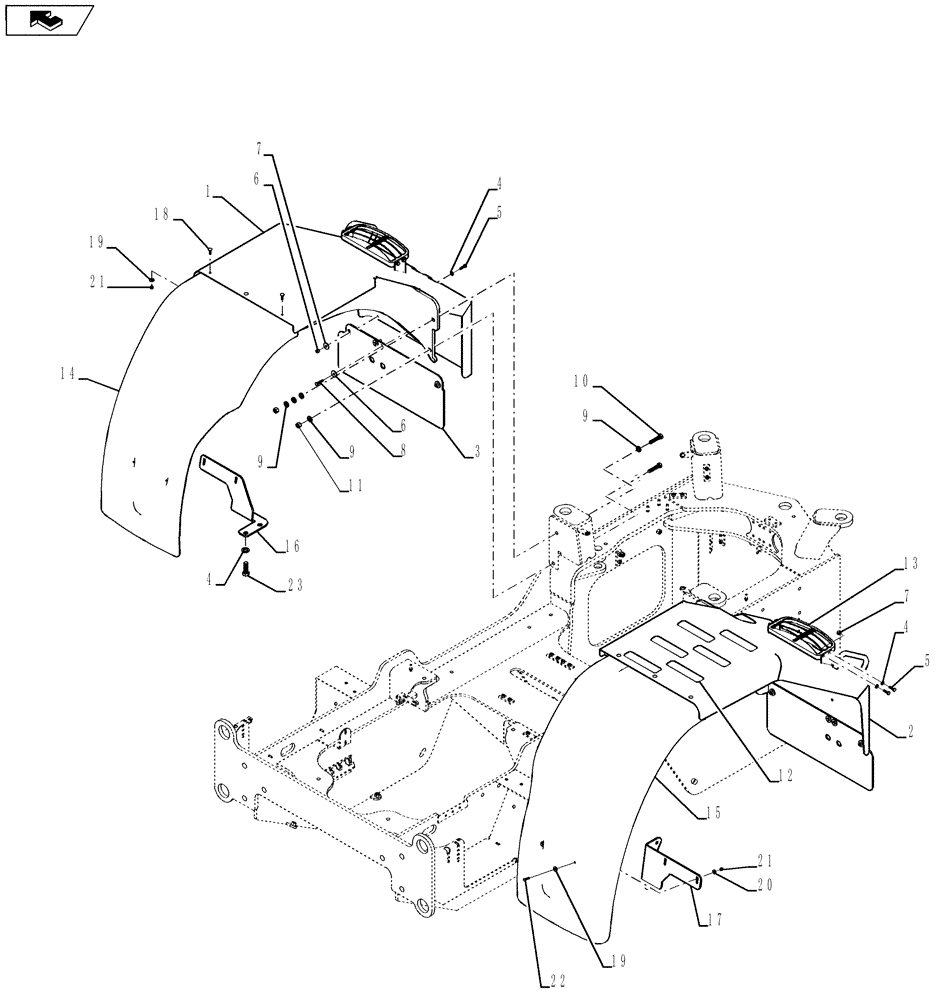

Схема запчастей Case 921F - (90.116.08) - FENDERS, REAR WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
7
18
13
6
8
4
9
5
21
19
5
21
2
4
20
23
14
16
12
9
6
17
4
1
home
11
10
19
15
7
9
22

Артикул

Название

Примечание

Количество

1

87569006

SUPPORT

LH Platform

1шт.

2

87569007

SUPPORT

RH Platform

1шт.

3

87327561

MUDFLAP

Rear

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

26шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

Zinc

8шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

8

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

11

829-1416

NUT,M16, Cl 10

4шт.

12

D55216

PAD,2" x 9"

12шт.

13

87434475

STEP

Gray

2шт.

14

87346956

FENDER

Rear; Wide; LH

1шт.

15

87346957

FENDER

Rear; Wide; RH

1шт.

16

84316380

BRACKET

Fender; Rear; Wide LH

1шт.

17

84316378

BRACKET

Fender; Rear; Wide RH

1шт.

18

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

19

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

20

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

22

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

23

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 23
