Запчасти Case 921F (90.116.06) - FENDERS, REAR SUPPORT STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

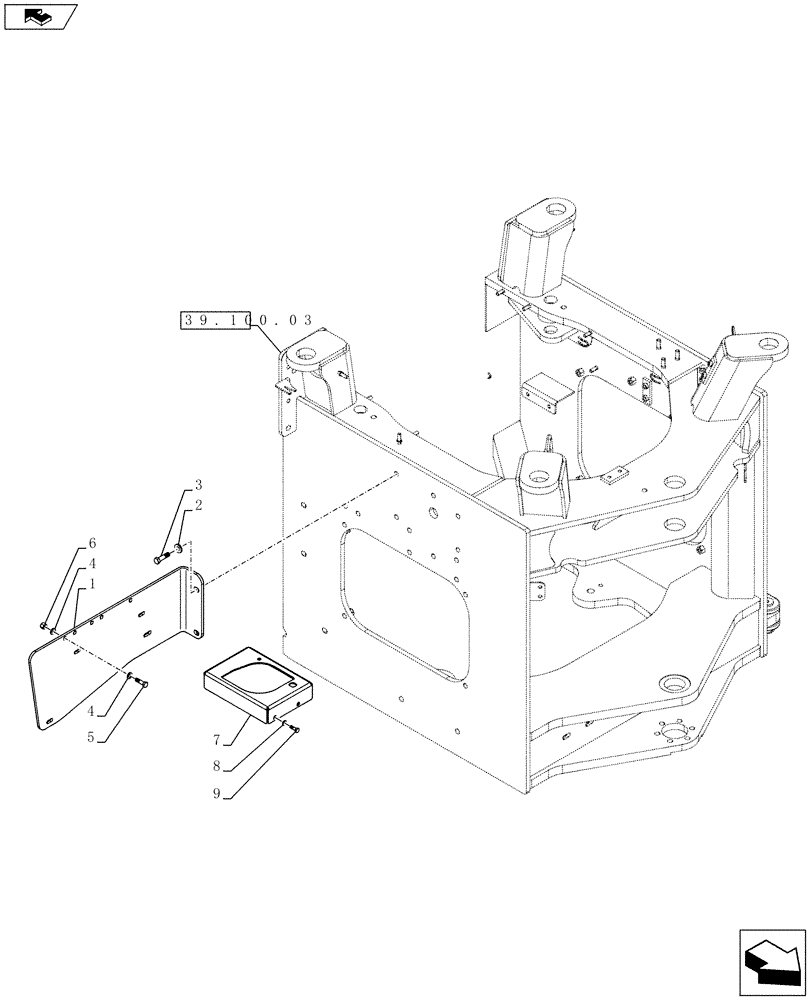

Схема запчастей Case 921F - (90.116.06) - FENDERS, REAR SUPPORT STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
39.100.03
home
3
4
1
2
8
7
5
9

Артикул

Название

Примечание

Количество

1

84194979

BRACKET

Right Hand Fender Support

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

84373996

TOP COVER

Washer Bottle Box

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 9
