(90.116.02) - REAR WHEEL WELL FENDERS AND FENDER GUARDS

Запчасти Case 921F (90.116.02) - REAR WHEEL WELL FENDERS AND FENDER GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

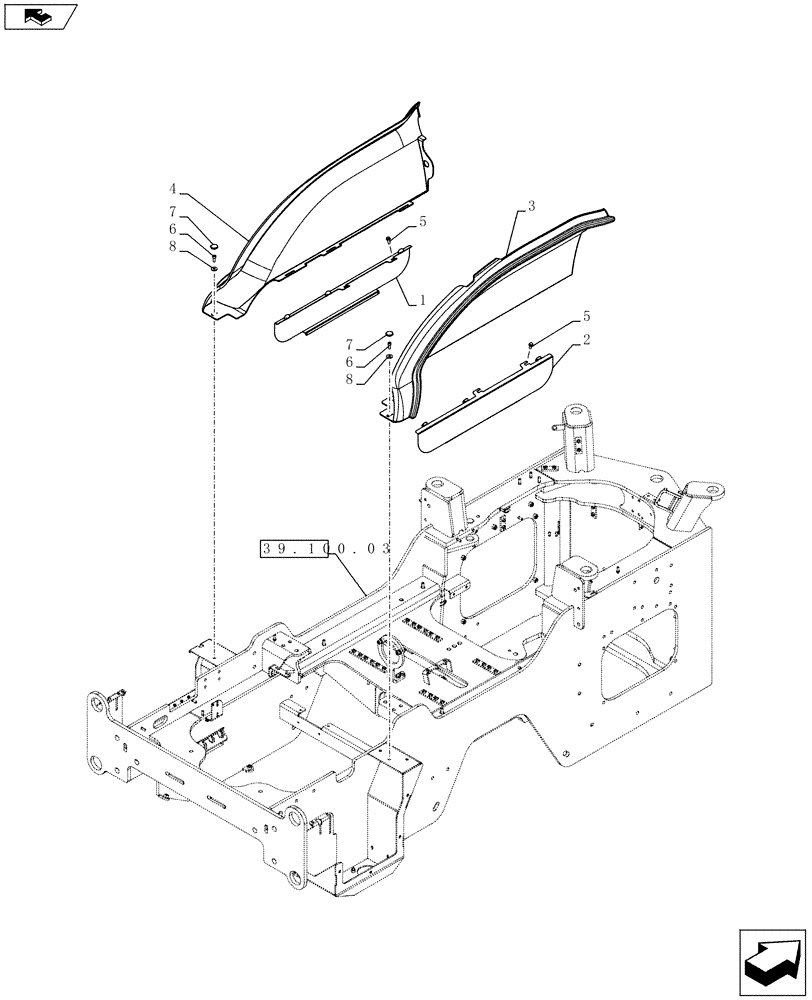

Схема запчастей Case 921F - (90.116.02) - REAR WHEEL WELL FENDERS AND FENDER GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
6
8
7
2
home
39.100.03
8
4
7
1
5
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87317605

GUARD

Left Hand Wheel

1шт.

2

87317600

GUARD

Right Hand Wheel

1шт.

3

87323456

FENDER

Wheel Well, Right Hand

1шт.

4

87323473

FENDER

Wheel Well, Left Hand

1шт.

5

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

6

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

7

87323866

KNOB

Fluted Black, M10

2шт.

8

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.
