(90.108.09[02]) - DECALS - COMMON TO MODEL

Запчасти Case 921F (90.108.09[02]) - DECALS - COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

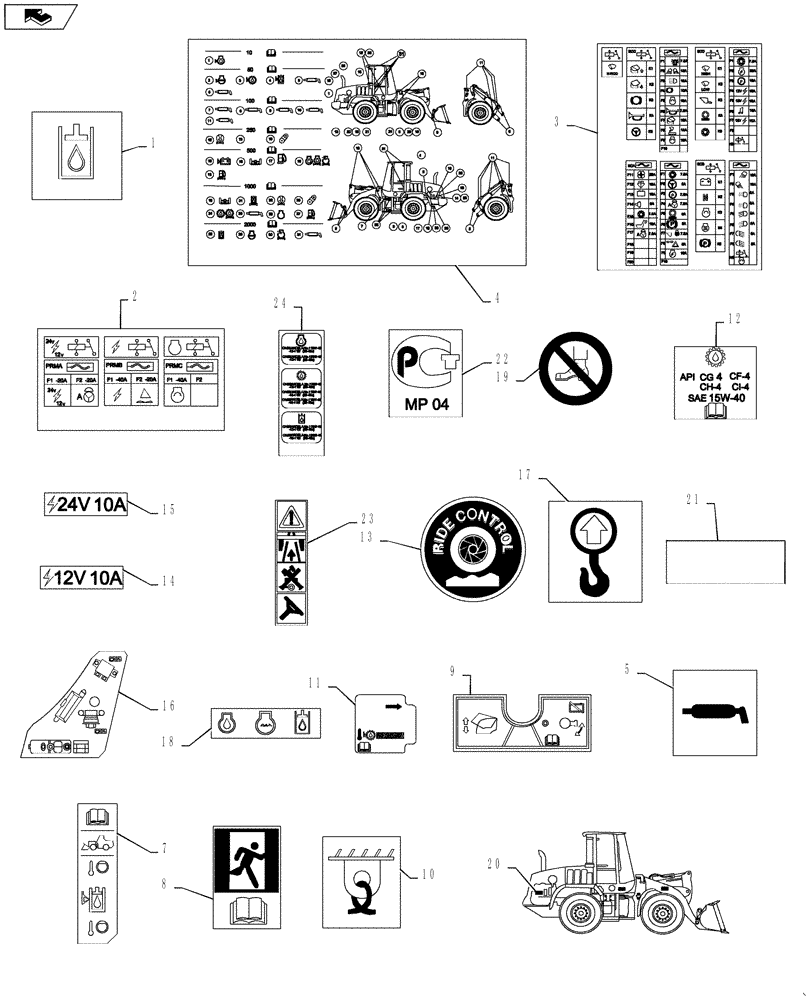

Схема запчастей Case 921F - (90.108.09[02]) - DECALS - COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
4
13
19
24
1
5
15
22
8
16
20
18
10
17
2
home
11
21
3
7
23
14
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

395895A1

DECAL

Hydraulic Fluid

1шт.

2

84328921

DECAL

Fuse

1шт.

3

87647668

DECAL

Fuse Location

1шт.

4

87598750

DECAL

Maintenance Char

1шт.

5

187864A1

DECAL

Lubrication

2шт.

6

186989A1

EMBLEM

Case

1шт.

7

386741A2

DECAL

Hydraulic Fluid Temperature Level

1шт.

8

329051A1

DECAL

Emergency Exit

1шт.

9

87524649

DECAL

Battery Disconnect

1шт.

10

139728A1

DECAL

Tie Down

4шт.

11

8602227

DECAL

Transmission Fluid Level

1шт.

12

87713879

DECAL

15W-40

1шт.

13

304083A1

DECAL

Ride Control

2шт.

14

365935A2

DECAL

12 Volt

1шт.

15

364741A1

DECAL

24 Volt

1шт.

16

84125381

DECAL

DECAL, Fuse And Relay

1шт.

17

139729A1

DECAL

Lift

4шт.

18

387149A1

DECAL

Fluid Drains

1шт.

19

E134402

DECAL

No Step

1шт.

20

76085355

REFLECTOR

2шт.

21

D55216

PAD,2" x 9"

2 x 9 in

1шт.

22

87750555

DECAL

PCT

1шт.

23

84128349

DECAL

Steering Warning

1шт.

24

84181938

DECAL

DECAL, Fluid Temperature

1шт.

25

87578198

EMBLEM

Case 35mm

1шт.

26

87429186

EMBLEM

Case Engine

1шт.

27

87415931

DECAL

Case Engine

3шт.

28

87546330

DECAL

Cab Visor Fritting

1шт.

29

84311902

DECAL

Customer Assistance Decal, Start Serial: NBF213022

1шт.
