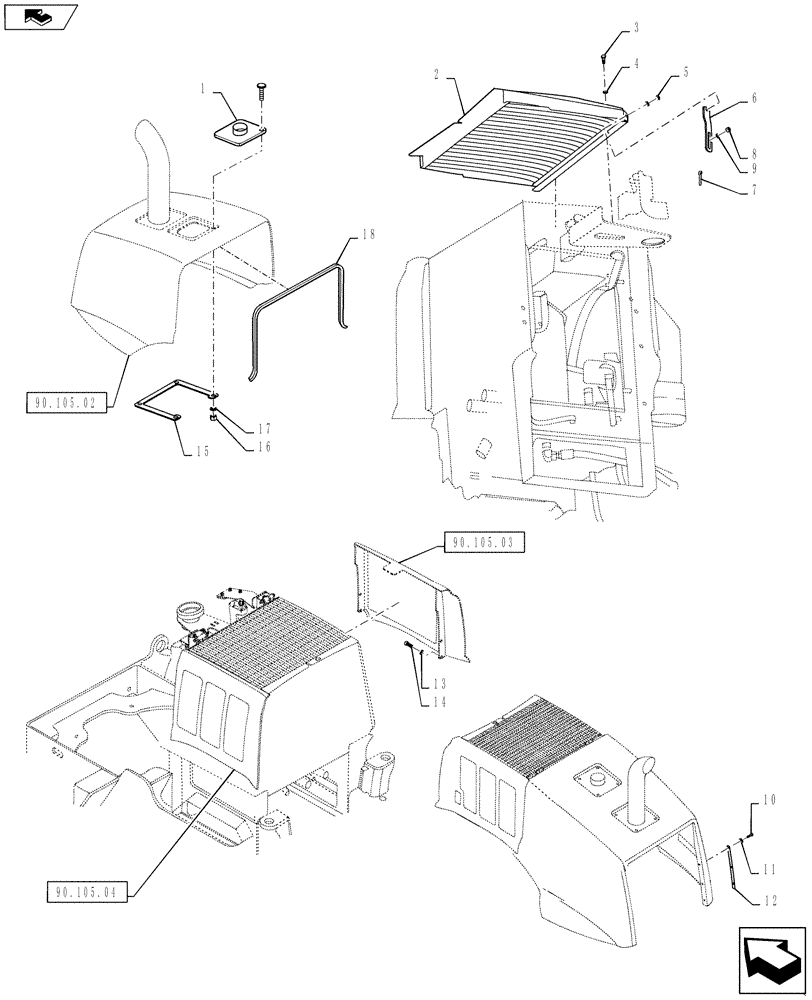

Запчасти Case 921F (90.105.05[02]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8500379

AIR INTAKE

Top Intake

1шт.

2

87308388

SCREEN

Top

1шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

4

892-11008

LOCK WASHER,8mm ID

3шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

8602476

PROP

Bar

1шт.

7

733-3220

COTTER PIN,M3.2 x 20

1шт.

8

832-10406

NUT,M6 x 1, Cl 8

1шт.

9

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

10

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

11

892-11006

LOCK WASHER,M6

6шт.

12

444931A1

PLATE

Backing

2шт.

13

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

14

87632741

STEP BOLT,M8 x 16mm, Cl 12.9

6шт.

15

8500382

PLATE

Intake Backing

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

18

8605846

RUBBER SEAL,2385mm L

Hood

1шт.
