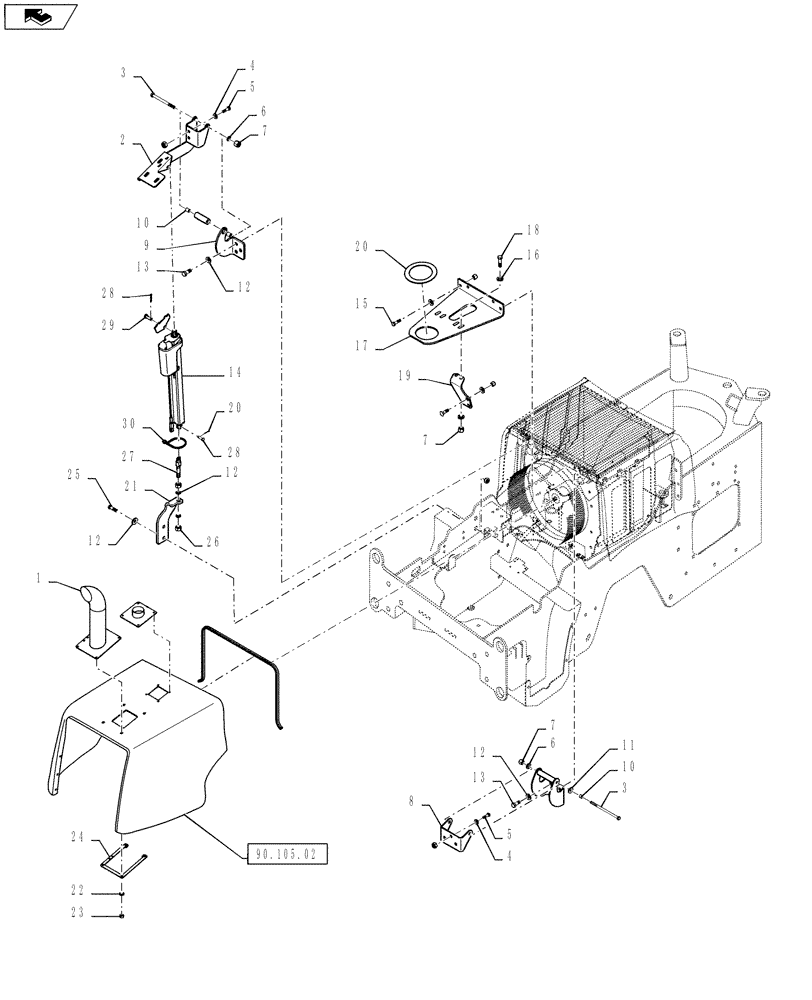

Запчасти Case 921F (90.105.05[01]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8500375

EXHAUST SYSTEM PIPE

Assembly

1шт.

2

87625616

BRACKET

Hinge Hood Lift

1шт.

3

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

8

84283945

HALF-HINGE

Right Side

1шт.

9

8605371

LATCH HOOK

Hood Mount Left

1шт.

10

382495A1

BUSHING

4шт.

11

84283942

HALF-HINGE

Right Side

1шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

9шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

5шт.

14

47382420

ACTUATOR

375mm Stroke

1шт.

15

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

16

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

17

84289016

BRACKET, SUPPORTING

1шт.

18

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

19

84260034

BRACKET, SUPPORTING

1шт.

20

8500403

SEAL

1шт.

21

84375238

BRACKET, SUPPORTING

Jack Base

1шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

24

408196A1

PLATE

Exhaust Backing

1шт.

25

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

26

829-1416

NUT,M16, Cl 10

2шт.

27

87531205

ROD

1шт.

28

733-3220

COTTER PIN,M3.2 x 20

1шт.

29

728-1240

CLEVIS PIN,M12 x 40

2шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
