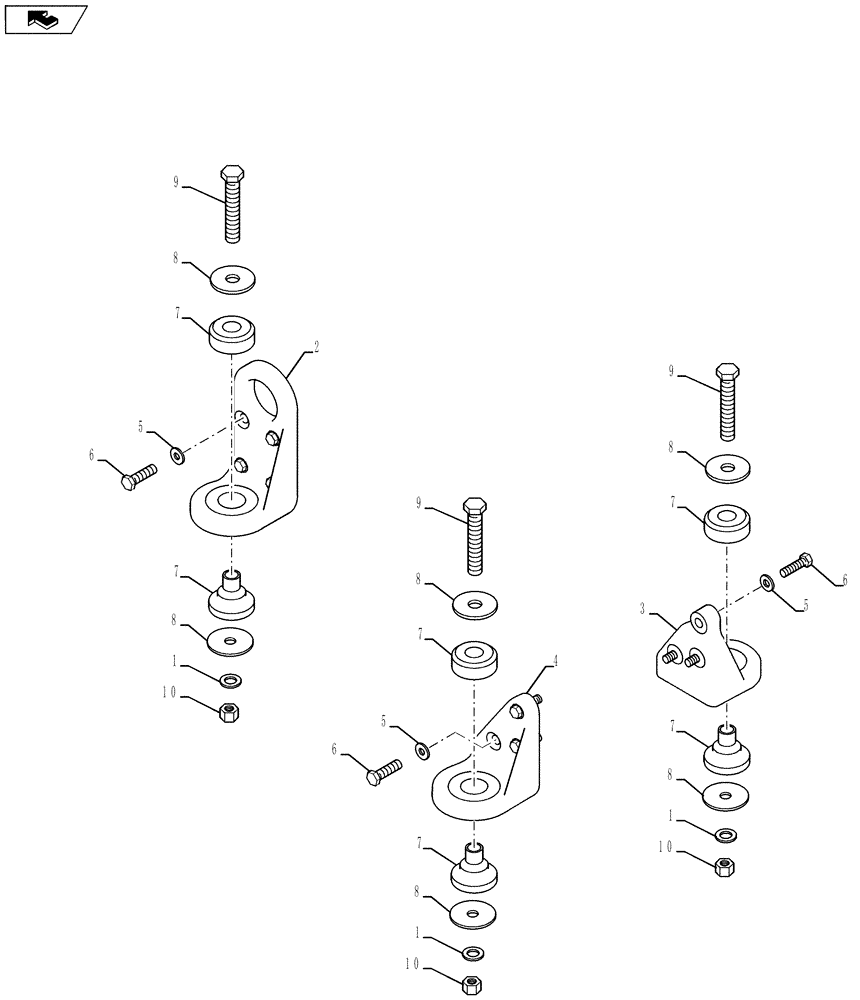

Запчасти Case 921F (10.012.01) - MOUNTING, ENGINE (10) - ENGINE

1

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

2

8602302

ENGINE MOUNT

Front

2шт.

3

8602303

ENGINE MOUNT

Right Rear

1шт.

4

8602304

ENGINE MOUNT

Left Rear

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

6

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

7

361811A1

ISOLATOR

Rear

4шт.

8

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

8шт.

9

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

10

832-10416

NUT,M16 x 2, Cl 8

4шт.
