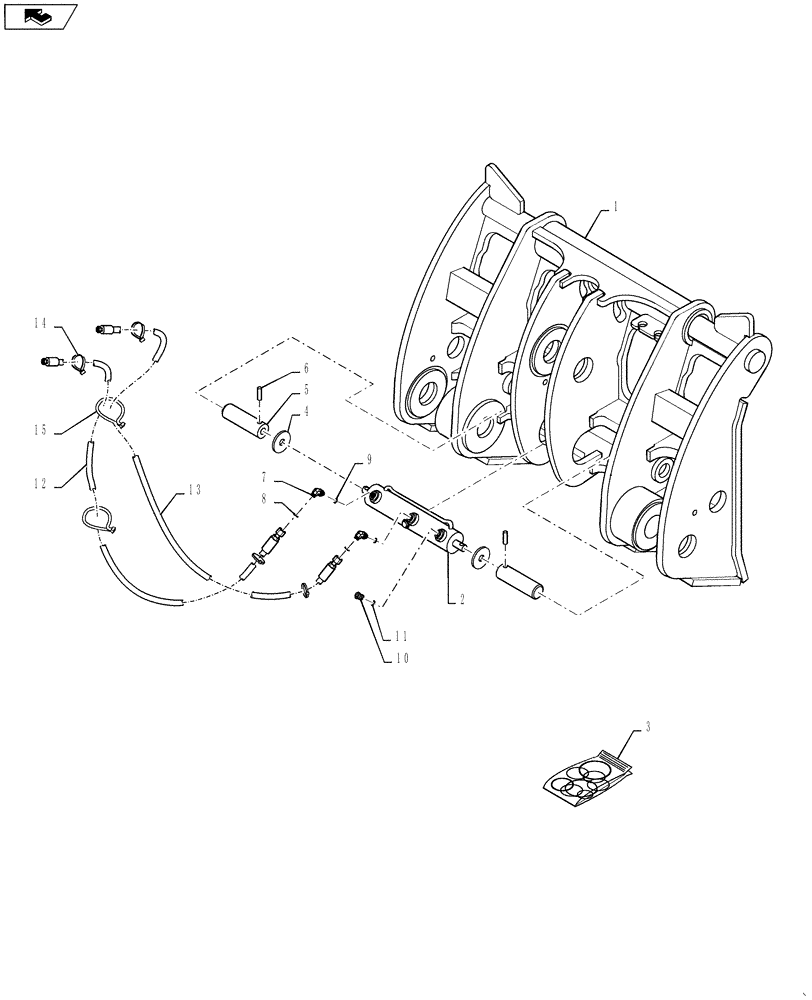

1
87741072
FRAME
COUPLER, Z-Bar
1шт.
2
84139131
HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke
Coupler Inc. 3
1шт.
3
87741101
SEAL KIT
Hydraulic Coupler Cylinder
1шт.
4
87741104
INDICATOR
Coupler, Red
2шт.
5
87741099
SPECIAL PIN,50.8mm OD x 173mm L
Coupler Pin
2шт.
6
87023162
PIN,9.53mm OD x 44.45mm L
2шт.
7
86579686
90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB
Incl. 8, 9
2шт.
8
86639042
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
9
9824050
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
1шт.
10
221576A1
PLUG,Hex Soc, M14 x 1.5, ORB
Incl. 11
1шт.
11
14437785
O-RING,11.3mm ID x 2.4mm
1шт.
12
47112456
SLEEVE
Nylon
2шт.
13
87741087
HOSE ASSY.
Z-Bar Coupler
2шт.
14
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
3шт.
15
86566989
CABLE TIE,208mm L
CABLE STRAP
4шт.
