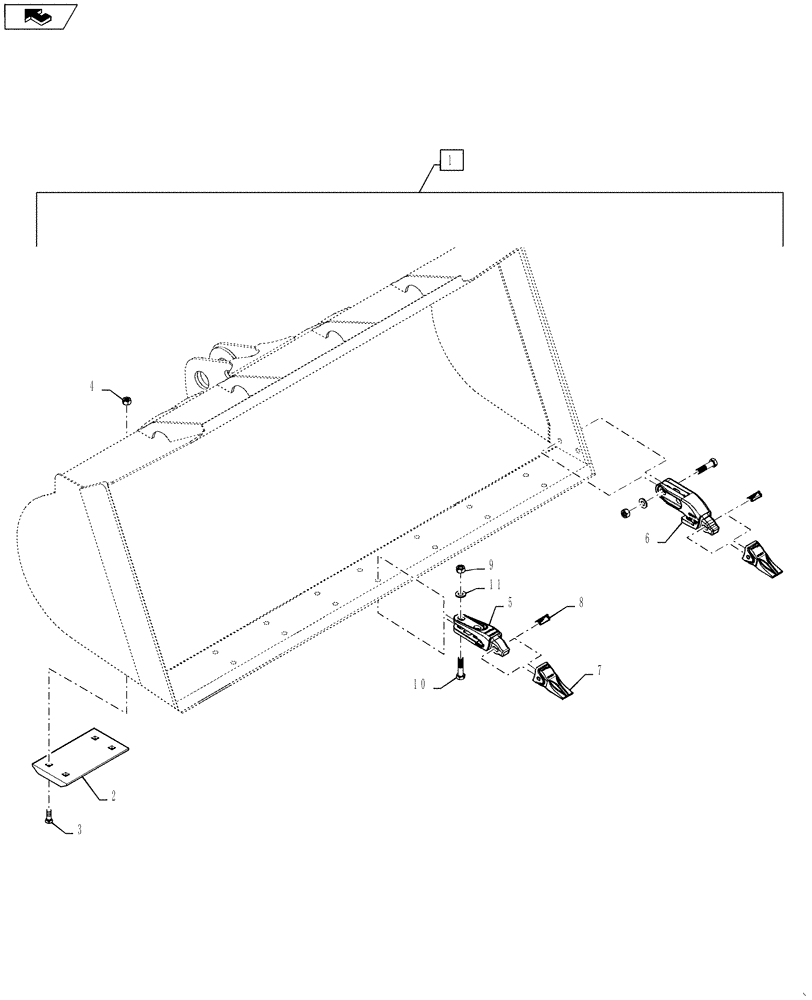

Запчасти Case 921F (82.100.02[04]) - LOADER BUCKET COUPLER MOUNT WITH TEETH (82) - FRONT LOADER & BUCKET

1

84496737

BUCKET

3.8 yd Bucket Assy Coupler Mount Inc 2-11 Ship Direct

1шт.

2

8500180

SKID PLATE

Skid Plate Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

Skid Plate Bolts

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

Skid Plate Nuts

8шт.

5

84168134

BUCKET TOOTH SHANK

Adapter Tooth Bolt On Center

7шт.

6

84168137

BUCKET TOOTH SHANK

Adapter Tooth Bolt On Corner

2шт.

7

84168135

BUCKET TOOTH

Bucket Tooth Point

9шт.

7

84216208

BUCKET TOOTH

Rock Chisel (SF15RC)

9шт.

7

84216210

BUCKET TOOTH

General Purpose (SF15SYL)

9шт.

7

84216211

BUCKET TOOTH

Tiger (SF15TV)

9шт.

7

84216212

BUCKET TOOTH

Twin Tiger (SF15UT)

9шт.

7

84216213

BUCKET TOOTH

Flare (SF15F)

9шт.

7

84216214

BUCKET TOOTH

Heavy Penetrater (SF15HP)

9шт.

7

84216215

BUCKET TOOTH

Rock Loader (SF15RL)

9шт.

8

84168136

BUCKET TOOTH KEY

Tooth Point Pin

9шт.

9

429-1016

NUT,1"-8, G8

Tooth Adapter Nut

18шт.

10

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

Tooth Adapter Bolt

18шт.

11

496-21106

WASHER,1 1/16" x 2" x .209", HDN

Tooth Adapter Washer

18шт.
