(55.512.03) - JOYSTICK STEERING FRAME HARNESS

Запчасти Case 921F (55.512.03) - JOYSTICK STEERING FRAME HARNESS (55) - ELECTRICAL SYSTEMS

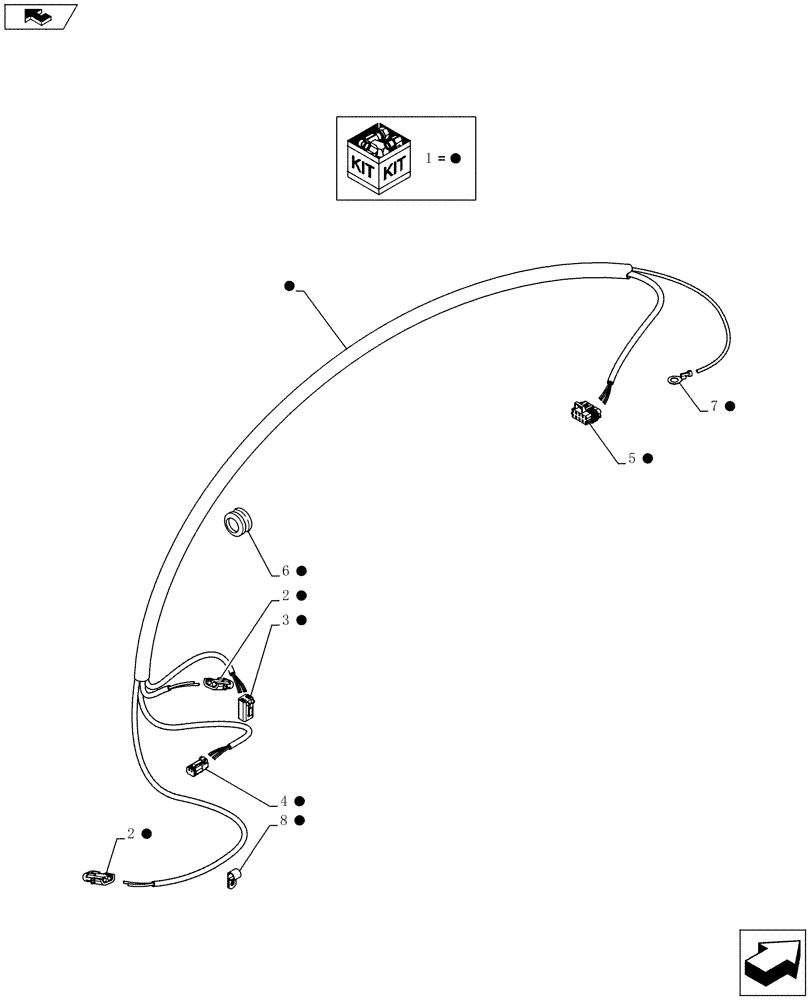

Схема запчастей Case 921F - (55.512.03) - JOYSTICK STEERING FRAME HARNESS (55) - ELECTRICAL SYSTEMS
1
1
2
2
1
1
1
1
4
1
1
7
8
5
1
6
1
home
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87493786

WIRE HARNESS

Joystick Steering

1шт.

2

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Cavity Recepticle

2шт.

3

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Cavity Plug

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity Plug

1шт.

5

256352A1

CONNECTOR, ELEC

CONNECTOR 10 Cavity Plug

1шт.

6

NSS

NOT SOLD SEPARAT

Butt Splice

2шт.

7

1964706C1

TERMINAL CONNECTOR

Ring Terminal

1шт.

8

515-21111

CLAMP

CLAMP

1шт.

Выбрано товаров: 8
