Запчасти Case 921F (55.420.02) - HEIGHT,RETURN TO TRAVEL CONTROL Z-BAR (55) - ELECTRICAL SYSTEMS

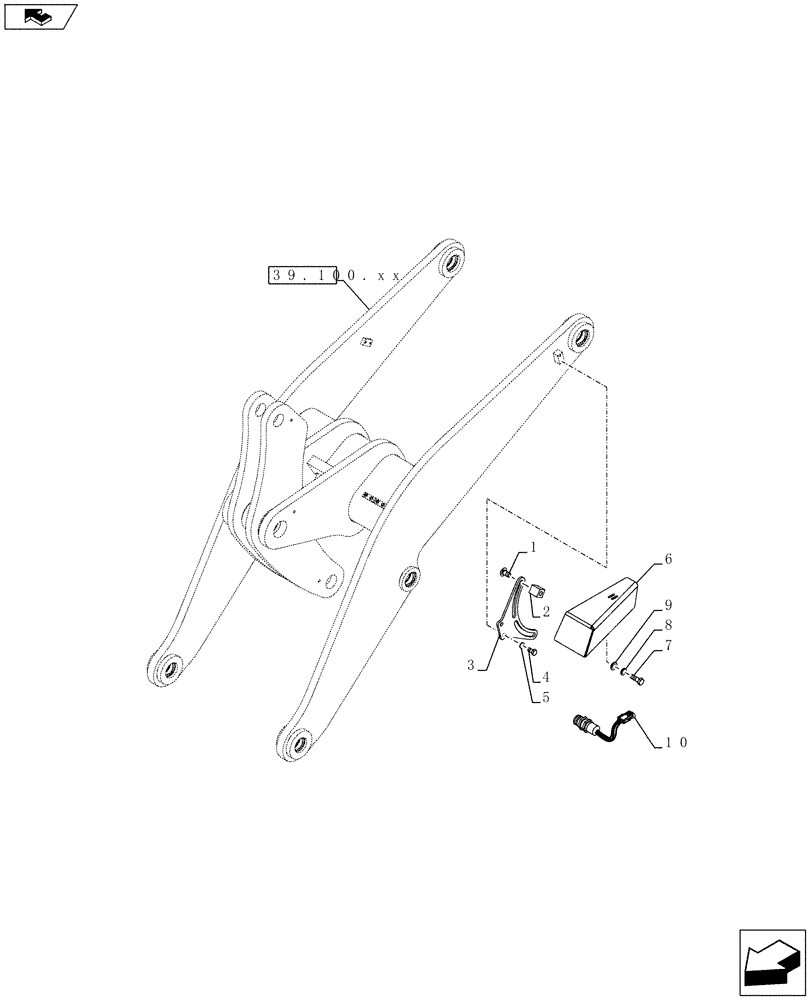

Схема запчастей Case 921F - (55.420.02) - HEIGHT,RETURN TO TRAVEL CONTROL Z-BAR (55) - ELECTRICAL SYSTEMS
9
home
10
2
5
39.100.xx
6
3
7
8
1
4

Артикул

Название

Примечание

Количество

1

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

2

87437102

BLOCK

Proximity Switch

2шт.

3

87345327

PLATE

Target Mount

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

87430084

COVER

Proximity Switch

1шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

8

892-11012

LOCK WASHER,M12

Spring Lock

2шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

10

1546498C1

SWITCH

Proximity, Normally Closed

1шт.

Выбрано товаров: 10
