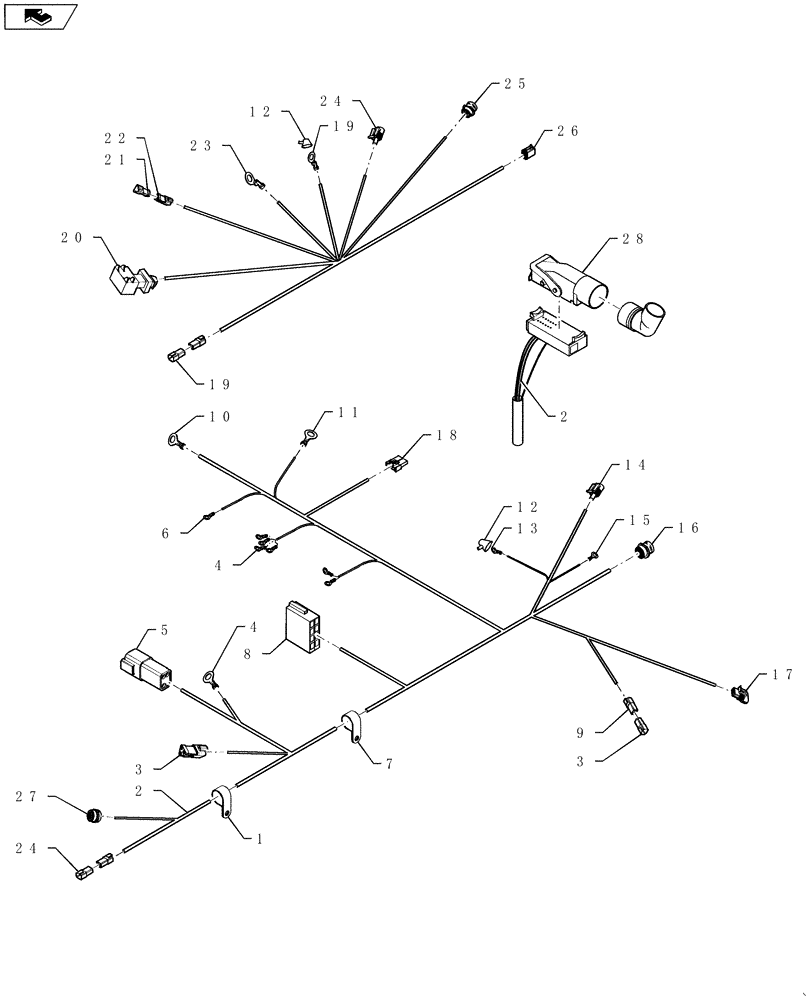

Запчасти Case 921F (55.100.09[02]) - HARNESS, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

2

NSS

NOT SOLD SEPARAT

Butt Splice

5шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Recepticle

2шт.

4

1964718C1

TERMINAL CONNECTOR

Ring

7шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Recepticle

1шт.

6

1964720C1

TERMINAL CONNECTOR

Ring

1шт.

7

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1шт.

8

194788A1

CONNECTOR, 2-POLE

2-Cavity Plug

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

10

386008A1

TERMINAL CONNECTOR

Ring

1шт.

11

382256A1

TERMINAL CONNECTOR

Ring

1шт.

12

399470R1

BOOT

Terminal Cover

2шт.

13

NSS

NOT SOLD SEPARAT

TERMINAL, Ring

1шт.

14

8602417

TERMINAL CONNECTOR,Female

1-Cavity Plug

1шт.

15

1964708C1

TERMINAL CONNECTOR

Ring

1шт.

16

291718A1

ELEC CONNECTOR,Female, 2 Pin

2-Pin Plug

1шт.

17

87709809

ELEC CONNECTOR

1шт.

18

NSS

NOT SOLD SEPARAT

35-Cavity Recepticle

1шт.

19

NSS

NOT SOLD SEPARAT

TERMINAL, Ring

2шт.

20

256340A1

CONNECTOR, ELEC

CONNECTOR

1шт.

21

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

22

225295C1

ELEC CONNECTOR,Female, 3 Pin

3-Cavity Plug

1шт.

23

NSS

NOT SOLD SEPARAT

TERMINAL, Ring

1шт.

24

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Cavity Plug

2шт.

25

409084A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

26

3227856R1

CONNECTION

2-Cavity Recepticle

2шт.

27

225320C1

ELEC CONNECTOR

8-Cavity Recepticle

1шт.

28

87632418

KIT

Plug

1шт.
