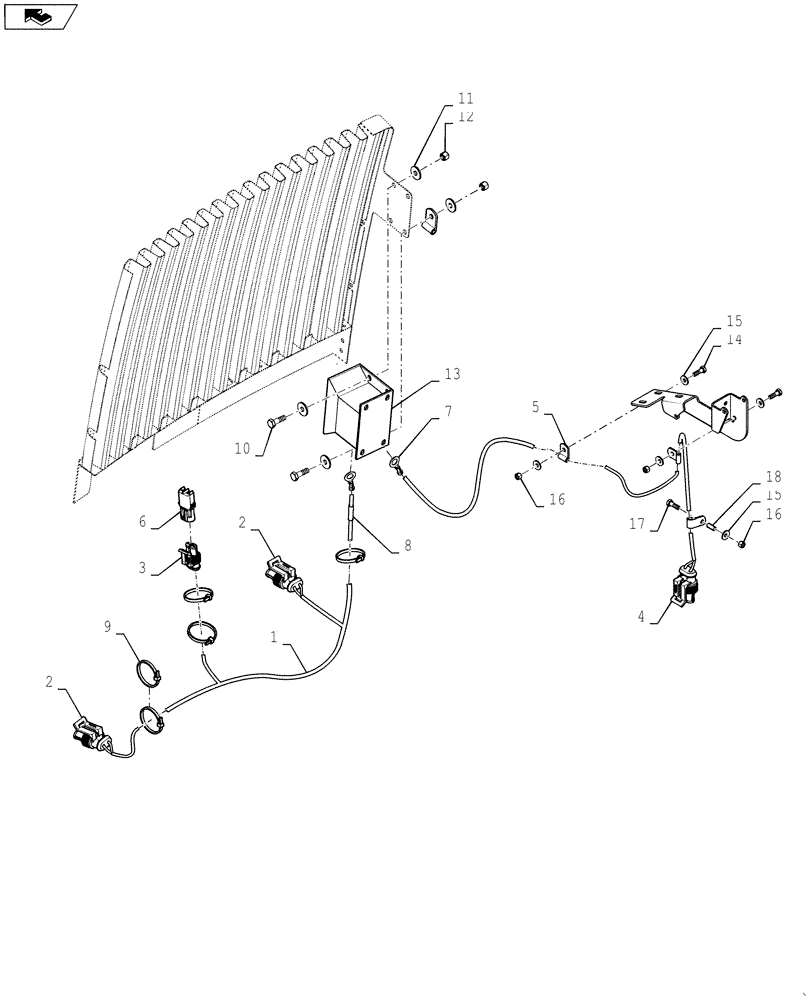

Запчасти Case 921F (55.100.08) - HARNESS, BACKUP ALARM AND INSTALLATION (55) - ELECTRICAL SYSTEMS

1

87613715

WIRE HARNESS

Backup Alarm

1шт.

2

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-Cavity Plug

2шт.

3

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

4

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8-Cavity Plug

1шт.

5

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

4шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Recepticle

1шт.

7

1964702C1

TERMINAL CONNECTOR

Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Butt Splice

3шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

5шт.

10

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

12

832-10406

NUT,M6 x 1, Cl 8

4шт.

13

D121972

ALARM

Back Up

1шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

17

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

3шт.

18

L126936

SPACER

1шт.
