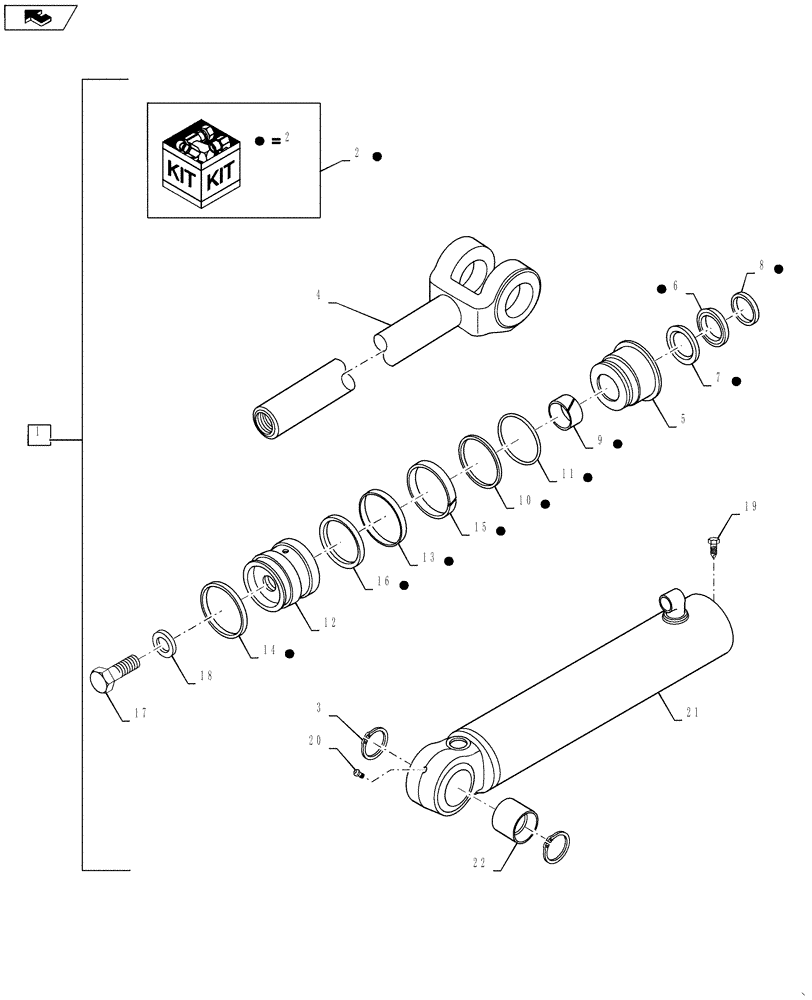

Запчасти Case 921F (41.216.02) - STEERING CYLINDER ASSEMBLY (41) - STEERING
№
Артикул
Название
Примечание
Количество
1
84351775
HYDRAULIC CYLINDER
Steering Right Side Inc. 1 - 20, Serial Range: -NDF220260
1шт.
1
84351775R
REMAN-HYD CYLINDER
821F, 921F, Both WHEEL LOADER - TIER 4 / TIER 2 (NA), Steering Right Side
1шт.
1
84351775C
CORE-HYD CYLINDER
Return Number
1шт.
1
47412984
STEERING CYLINDER
Steering Cylinder, Right Hand, Start Serial: NDF220261
1шт.
1
84351777
HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 481.9mm Stroke
Steering Left Side Inc. 1-20, Serial Range: -NDF220260
1шт.
1
84351777R
REMAN-HYD CYLINDER
821F, 921F, Both WHEEL LOADER - TIER 4 / TIER 2 (NA), Steering Left Side
1шт.
1
84351777C
CORE-HYD CYLINDER
Return Number
1шт.
1
47415407
STEERING CYLINDER
Steering Cylinder, Left Hand, Start Serial: NDF220261
1шт.
2
87363451
SEAL KIT
Steering Cylinder; Incl. Refs. 6 - 11, 13 - 16
1шт.
4
442703A1
PISTON ROD
Rod Weldment
1шт.
5
1980321C3
GLAND
Packing
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL, ROD
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL, BUFFER
1шт.
8
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
Wiper
1шт.
9
G102425
BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk
Rod
1шт.
10
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
Backup
1шт.
11
238-5233
O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro
1шт.
12
87307859
PISTON
82.6 Bore; 44.5 Rod
1шт.
13
87398130
SEAL,79.07mm ID x 83.79mm OD x 6.96mm Thk
Piston
1шт.
14
192330A1
SEALING RING,75.3mm ID x 82.5mm OD x 4.7mm Thk
Cast Iron; 82.6 Dia
1шт.
15
S109445
RING,82.55mm OD, Ext
Wear
1шт.
16
S109444
RING,Square, 5.28mm Thk x 68.96mm ID
Loader
1шт.
17
86982439
SPECIAL BOLT,Hex, 14, 1 x 4"
Bolt and Washer Assy; Incl. Ref. 18
1шт.
18
NSS
NOT SOLD SEPARAT
WASHER
1шт.
19
86642312
SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
21
NSS
NOT SOLD SEPARAT
Tube
1шт.
22
442711A1
BUSHING,39.99mm ID x 62mm OD x 28mm W
Self Aligning
1шт.
Выбрано товаров: 29
